ADI ADP1706ARDZ-1.2-R7

Manufacturer No:

ADP1706ARDZ-1.2-R7

Manufacturer:

ADI

Package:

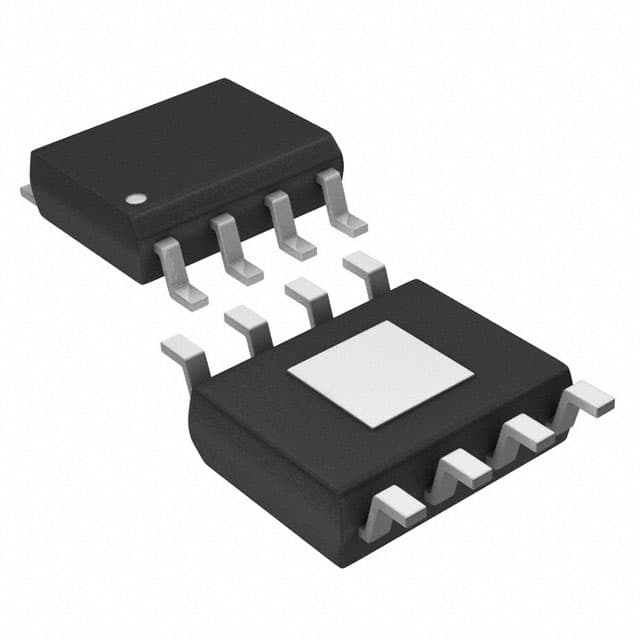

8-SOIC (0.154, 3.90mm Width) Exposed Pad

Description:

Enable, Soft Start Fixed ADP1706 PMIC 8 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP1706ARDZ-1.2-R7 information

ADI ADP1706ARDZ-1.2-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP1706ARDZ-1.2-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
8-SOIC (0.154, 3.90mm Width) Exposed Pad

Surface Mount
YES

Number of Pins
8

Weight
540.001716mg

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Packing Method
TAPE AND REEL

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADP1706

Pin Count
8

Number of Outputs
1

Qualification Status
Not Qualified

Voltage - Input (Max)
5.5V

Output Voltage
1.2V

Output Type
Fixed

Max Output Current
1A

Operating Supply Current
1.55mA

Output Configuration
Positive

Max Supply Current
1.55mA

Control Features
Enable, Soft Start

Accuracy
1.5 %

Output Voltage 1
1.2V

Number of Regulators
1

Min Input Voltage
2.5V

Protection Features
Over Current, Over Temperature

Current - Quiescent (Iq)
390μA

Voltage Dropout (Max)
0.6V @ 1A

Reference Voltage
800mV

Dropout Voltage
345mV

Power Supply Rejection Ratio (PSRR)
70dB

Min Current Limit
1.1A

Nominal Output Voltage
1.2V

Output Voltage Accuracy
1.5 %

Download datasheets and manufacturer documentation for ADI ADP1706ARDZ-1.2-R7.

Datasheets:

analogdevicesinc-adp1708acpzr7-datasheets-3109.pdf

analogdevices-adp1706ardz12r7-datasheets-6567.pdf

analogdevices-adp1706ardz12r7-datasheets-6568.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

Product Description:

The ADP1706ARDZ-1.2-R7 is a linear voltage regulator from Analog Devices Inc. designed to provide a stable output voltage of 1.2V with high accuracy and low dropout voltage. This 8-pin surface-mount device is packaged in an 8-SOIC (0.154, 3.90mm Width) Exposed Pad and is available in Tape & Reel packaging.

Features:

High accuracy of 1.5% for the output voltage
Low dropout voltage of 345mV
Soft start and enable control features
Quiescent current of 390μA and maximum supply current of 1.55mA
Operating temperature range of -40°C to 125°C
Protection features include over current and over temperature protection
Power supply rejection ratio of 70dB

Applications:

Primary applications include powering low-voltage digital circuits, such as microcontrollers, memory devices, and other digital ICs.
Secondary applications include powering analog-to-digital converters, digital signal processors, and other low-power analog circuits.

Alternative Parts:

ADP1706 (base part number)
Other linear voltage regulators with similar specifications and features

Embedded Modules:

This component is used in various embedded systems, including:
Microcontroller-based systems
Digital signal processing systems
Analog-to-digital conversion systems

FAQs:

Q: What is the accuracy of the output voltage? A: The output voltage accuracy is 1.5%.

Q: What is the dropout voltage of the regulator? A: The dropout voltage is 345mV.

Q: What are the protection features of the regulator? A: The regulator has over current and over temperature protection features.

Q: Is the regulator RoHS compliant? A: Yes, the regulator is ROHS3 compliant.

Q: What is the operating temperature range of the regulator? A: The operating temperature range is -40°C to 125°C.

Q: What is the quiescent current of the regulator? A: The quiescent current is 390μA.

Q: What is the maximum supply current of the regulator? A: The maximum supply current is 1.55mA.

Q: What is the maximum output current of the regulator? A: The maximum output current is 1A.

Q: What is the minimum input voltage of the regulator? A: The minimum input voltage is 2.5V.

Q: What is the packaging method of the regulator? A: The packaging method is Tape & Reel.
