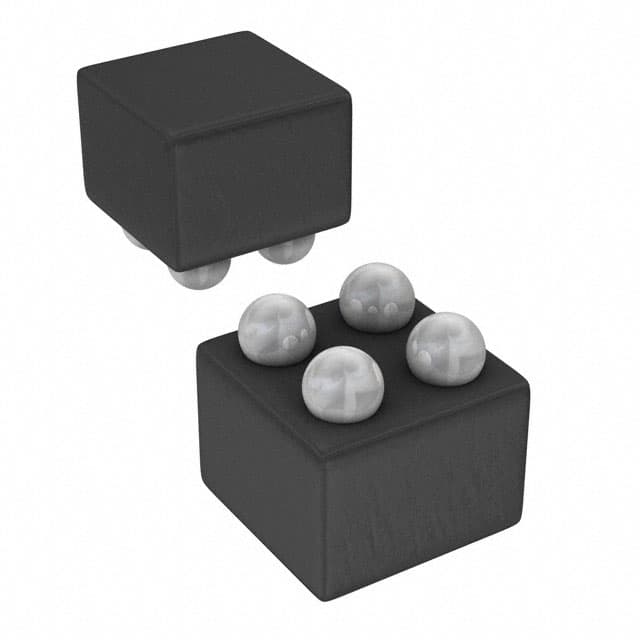

ADI ADP121-ACBZ188R7
Manufacturer No:
ADP121-ACBZ188R7
Manufacturer:
Package:
4-WFBGA, WLCSP
Description:
Enable Fixed Copper, Silver, Tin ADP121 PMIC 4 4-WFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADP121-ACBZ188R7 information
ADI ADP121-ACBZ188R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP121-ACBZ188R7.
- Type
- Parameter
- Contact Plating
- Copper, Silver, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 4-WFBGA, WLCSP
- Number of Pins
- 4
- Operating Temperature
- -40°C~125°C
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 4
- ECCN Code
- EAR99
- Terminal Finish
- TIN SILVER COPPER
- Subcategory
- Other Regulators
- Packing Method
- TAPE AND REEL
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADP121
- Pin Count
- 4
- Qualification Status
- Not Qualified
- Voltage - Input (Max)
- 5.5V
- Output Voltage
- 1.875V
- Output Type
- Fixed
- Max Output Current
- 150mA
- Operating Supply Current
- 40μA
- Nominal Supply Current
- 40μA
- Output Configuration
- Positive
- Max Supply Current
- 40μA
- Quiescent Current
- 30μA
- Control Features
- Enable
- Accuracy
- 2 %
- Max Output Voltage
- 3.3V
- Output Voltage 1
- 1.875V
- Number of Regulators
- 1
- Min Input Voltage
- 2.3V
- Protection Features
- Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Current - Quiescent (Iq)
- 21μA
- Reference Voltage
- 800mV
- Dropout Voltage1-Nom
- 0.09V
- Min Output Voltage
- 2.2V
- Power Supply Rejection Ratio (PSRR)
- 60dB
- Voltage Tolerance-Max
- 3%
Download datasheets and manufacturer documentation for ADI ADP121-ACBZ188R7.
PCN Packaging:
ConflictMineralStatement:
ADP121-ACBZ188R7 Overview
Deliveries are in Tape & Reel (TR) cases. The package is in a 4-WFBGA, WLCSP case. Basically, the voltage regulator chip is made up of 4 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 4. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. Several pins on the chip are 4-shaped. As an FYI, this IC voltage regulator has the basic part number ADP121. An example of this type of component would be a Other Regulators component. Packing the voltage regulator IC in this way is called TAPE AND REEL packing. The maximal output current reaches 150mA to meet the operating requirements. It operates in the 30μA Quiescent Current state. An electric current of 40μA is supplied to the regulator.
ADP121-ACBZ188R7 Features
Other Regulators subtageroy
TAPE AND REEL method of packing
ADP121-ACBZ188R7 Applications
There are a lot of Analog Devices Inc.
ADP121-ACBZ188R7 Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
