ADI ADP1190ACBZ-R7

Manufacturer No:

ADP1190ACBZ-R7

Manufacturer:

ADI

Package:

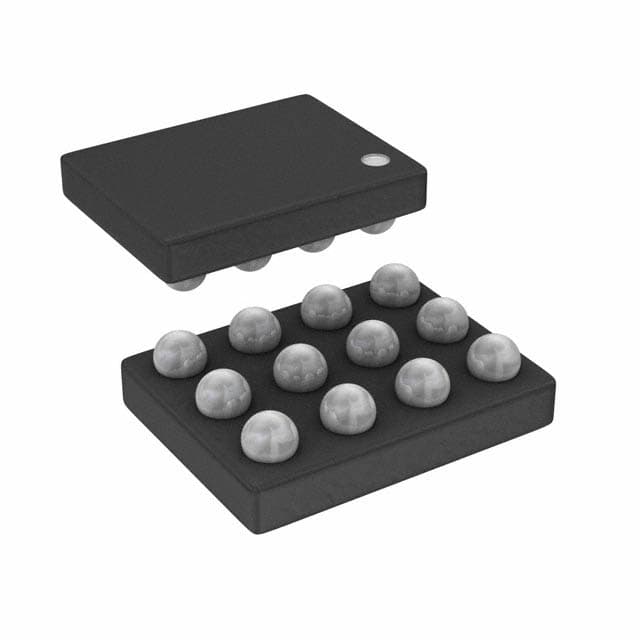

12-UFBGA, WLCSP

Description:

P-Channel PMIC ADP1190 12 Pin 12-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP1190ACBZ-R7 information

ADI ADP1190ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP1190ACBZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-UFBGA, WLCSP

Number of Pins
12

Turn Off Delay Time
4 μs

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Resistance
170mOhm

HTS Code
8542.39.00.01

Base Part Number
ADP1190

Pin Count
12

Number of Outputs
5 (4 Signal)

Output Type
P-Channel

Max Output Current
1A

Operating Supply Voltage
3.6V

Interface
On/Off

Analog IC - Other Type
SPST

Operating Supply Current
700nA

Output Current
500mA

Voltage - Supply (Vcc/Vdd)
Not Required

Max Supply Current
1A

Input Type
Non-Inverting

Turn On Delay Time
5 ms

Switch Type
General Purpose

Min Input Voltage
1.4V

Max Input Voltage
3.6V

Nominal Input Voltage
3.6V

Ratio - Input:Output
1:1

Voltage - Load
1.4V~3.6V

Rds On (Typ)
65m Ω

Source Url Status Check Date
2013-05-01 14:56:44.416

Features
Load Discharge

Height
330μm

Length
1.64mm

Width
1.24mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADP1190ACBZ-R7.

Datasheets:

analogdevicesinc-adp1190acbzr7-datasheets-2680.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

Product Description:

The ADP1190ACBZ-R7 is a highly integrated, 12-pin, surface-mount power distribution switch from Analog Devices Inc. This SPST (Single Pole Single Throw) switch is designed for general-purpose applications and features a load discharge function. With a compact 12-UFBGA package and a tape and reel (TR) packaging option, this device is ideal for space-constrained designs.

Features:

Load discharge function for improved system reliability
High-side output configuration for easy integration into designs
P-channel output type for efficient power switching
Operating temperature range of -40°C to 125°C TJ
Low operating supply current of 700nA
High output current of 500mA
Low Rds(on) of 65mΩ for efficient power switching

Applications:

Primary applications:
- Power distribution in automotive systems
- Power switching in industrial control systems
- Power management in consumer electronics
Secondary applications:
- Load switching in medical devices
- Power distribution in aerospace systems

Alternative Parts:

ADP1190 (base part number)
Other similar power distribution switches from Analog Devices Inc.

Embedded Modules:

This component is used in various embedded modules, including:
- Automotive power distribution modules
- Industrial control system modules
- Consumer electronics power management modules

FAQs:

Q: What is the maximum input voltage of the ADP1190ACBZ-R7? A: The maximum input voltage is 3.6V.

Q: What is the minimum input voltage of the ADP1190ACBZ-R7? A: The minimum input voltage is 1.4V.

Q: What is the maximum output current of the ADP1190ACBZ-R7? A: The maximum output current is 1A.

Q: What is the operating temperature range of the ADP1190ACBZ-R7? A: The operating temperature range is -40°C to 125°C TJ.

Q: Is the ADP1190ACBZ-R7 RoHS compliant? A: Yes, the ADP1190ACBZ-R7 is RoHS3 compliant.

Q: What is the package type of the ADP1190ACBZ-R7? A: The package type is 12-UFBGA, WLCSP.

Q: What is the lead time for the ADP1190ACBZ-R7? A: The lead time is 10 weeks.
