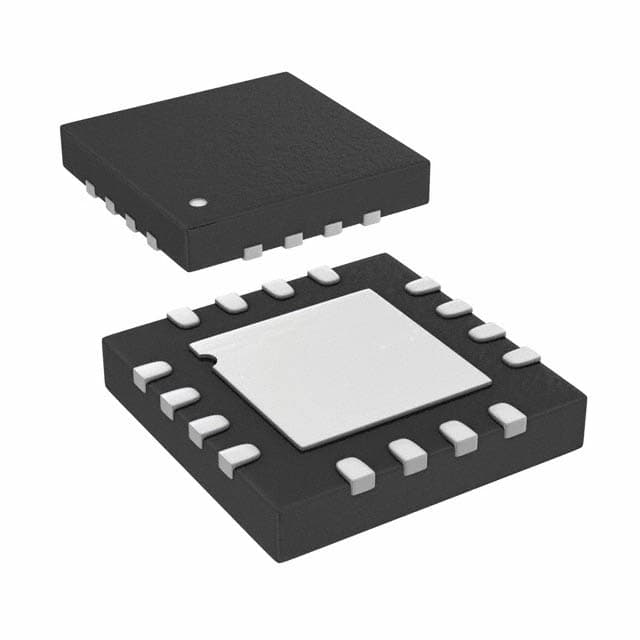

ADI ADM8843ACPZ-REEL7
Manufacturer No:
ADM8843ACPZ-REEL7
Manufacturer:
Package:
16-VFQFN Exposed Pad, CSP
Description:
3/5V 0.5mm PMIC ADM8843 16 Pin 3.3V 16-VFQFN Exposed Pad, CSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADM8843ACPZ-REEL7 information
ADI ADM8843ACPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADM8843ACPZ-REEL7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 1 week ago)
- Factory Lead Time
- 8 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-VFQFN Exposed Pad, CSP
- Number of Pins
- 16
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Type
- DC DC Regulator
- Terminal Finish
- Matte Tin (Sn)
- Applications
- Backlight, Camera Flash
- Subcategory
- Display Drivers
- Max Power Dissipation
- 2mW
- Technology
- CMOS
- Terminal Position
- QUAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Current Rating
- 20mA
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- ADM8843
- Pin Count
- 16
- Number of Outputs
- 4
- Efficiency
- 88 %
- Output Voltage
- 4.81V
- Max Output Current
- 20mA
- Power Supplies
- 3/5V
- Max Supply Voltage
- 5.5V
- Min Supply Voltage
- 2.6V
- Nominal Supply Current
- 5mA
- Power Dissipation
- 2mW
- Output Current
- 20mA
- Max Supply Current
- 5mA
- Max Output Voltage
- 4.81V
- Topology
- Switched Capacitor (Charge Pump)
- Min Input Voltage
- 2.6V
- Max Input Voltage
- 5.5V
- Output Current per Channel
- 20mA
- Max Output Power
- 2mW
- Internal Switch(s)
- Yes
- Dimming
- PWM
Download datasheets and manufacturer documentation for ADI ADM8843ACPZ-REEL7.
Datasheets:
ConflictMineralStatement:
ADM8843ACPZ-REEL7 Overview
