ADI ADGS1209BCPZ

Manufacturer No:

ADGS1209BCPZ

Manufacturer:

ADI

Package:

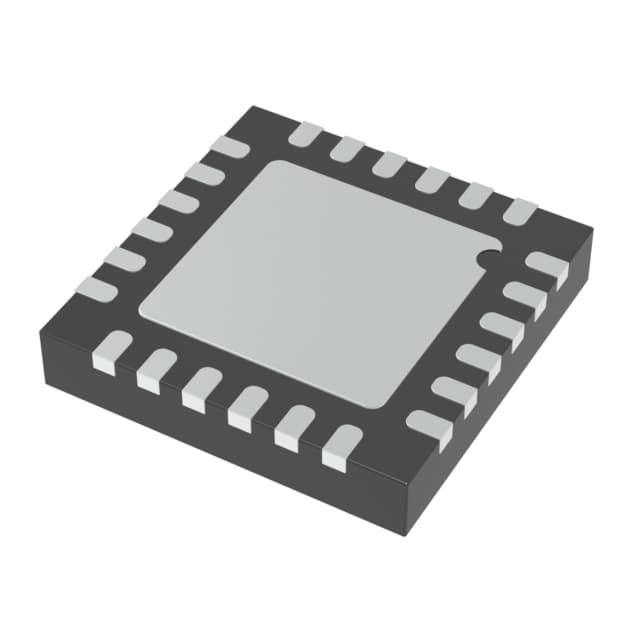

24-WFQFN Exposed Pad, CSP

Description:

110ns, 135ns 200Ohm QUAD Analog Switches 24 Pins 100pA 15V 24-WFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADGS1209BCPZ information

ADI ADGS1209BCPZ technical specifications, attributes, parameters and parts with similar specifications to ADI ADGS1209BCPZ.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
24-WFQFN Exposed Pad, CSP

Surface Mount
YES

Operating Temperature
-40°C~125°C

Packaging
Tray

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
2

Supply Voltage
15V

Terminal Pitch
0.5mm

Pin Count
24

Number of Channels
4

Number of Circuits
2

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Voltage - Supply, Single/Dual (±)
12V ±15V

Neg Supply Voltage-Nom (Vsup)
-15V

-3db Bandwidth
630MHz

On-State Resistance (Max)
200Ohm

Off-state Isolation-Nom
85 dB

Current - Leakage (IS(off)) (Max)
100pA

Channel Capacitance (CS(off), CD(off))
1pF 2pF

On-state Resistance Match-Nom
3.5Ohm

Switch Time (Ton, Toff) (Max)
110ns, 135ns

Charge Injection
0.4pC

Channel-to-Channel Matching (?Ron)
3.5 ?

Crosstalk
-85dB @ 1MHz

Switch-on Time-Max
155ns

Switch-off Time-Max
190ns

Length
4mm

Height Seated (Max)
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI ADGS1209BCPZ.

Datasheets:

analogdevicesinc-adgs1209bcpz-datasheets-6848.pdf

ADGS1209BCPZ Overview

The electronic part can be shipped overseas conveniently because it is packaged in 24-WFQFN Exposed Pad, CSP. In order to provide high reliability, an advanced packaging method Tray is used. There is an analog multiplexer mounted in position Surface Mount. There is 4:1 ratio between the number of multiplexers and demultiplexers. Around -40°C~125°C is the extended operating temperature. In total, there are 24 terminations. This electronic part offers high-quality output due to its 4 channels. In the case of a voltage supply of 15V volts, the electrical part can be powered up and run. There are 24 pins injected into the electronic part body. A total of 2 circuits make up this switch device. There is an integrated analog IC DIFFERENTIAL MULTIPLEXER in the module.

ADGS1209BCPZ Features

4 Channels
-3db Bandwidth: 630MHz

ADGS1209BCPZ Applications

There are a lot of Analog Devices Inc.
ADGS1209BCPZ Analog Switches & Multiplexers ICs applications.

Isolation
Medical
Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
