ADI ADGM1304JCPZ-RL7
ADI ADGM1304JCPZ-RL7

ADI ADGM1304JCPZ-RL7

Manufacturer No:

ADGM1304JCPZ-RL7

Manufacturer:

ADI

Package:

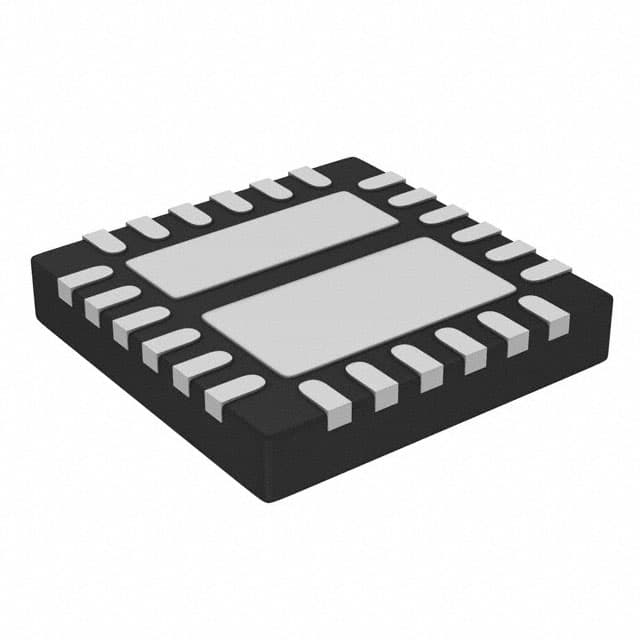

24-VFQFN Exposed Pad

Description:

General Purpose RF Type SP4T 0°C~85°C 0Hz~14GHz Isolation:19dB Insertion Loss:0.4dB 50Ohm IIP3:69dBm 3.1V~3.3V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADGM1304JCPZ-RL7 information

ADI ADGM1304JCPZ-RL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADGM1304JCPZ-RL7.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 4 weeks ago)
  • Factory Lead Time
  • 10 Weeks
  • Package / Case
  • 24-VFQFN Exposed Pad
  • Surface Mount
  • YES
  • Number of Pins
  • 24
  • Operating Temperature
  • 0°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 24
  • Voltage - Supply
  • 3.1V~3.3V
  • Terminal Position
  • QUAD
  • Terminal Form
  • NO LEAD
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • ADGM1304
  • Pin Count
  • 24
  • Circuit
  • SP4T
  • Test Frequency
  • 6GHz
  • Impedance
  • 50Ohm
  • Frequency Range
  • 0Hz~14GHz
  • Insertion Loss
  • 0.4dB
  • Isolation
  • 19dB
  • RF Type
  • General Purpose
  • IIP3
  • 69dBm
  • Length
  • 5mm
  • Height Seated (Max)
  • 1mm
  • Width
  • 4mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ADI ADGM1304JCPZ-RL7.

Datasheets:

ConflictMineralStatement:

ADGM1304JCPZ-RL7 Overview


For optimal performance, this RF Switch makes use of the Tape & Reel (TR) package.In this RF Switch, there are a total of 24 terminations.The operating temperature should be kept at 0°C~85°C when the RF Switch is in operation.The ADGM1304 family of high power RF switchs includes this high power RF switch.There are 24 pins that are used for the operation of the high power RF switch.General Purpose RF Type from the RF switch ic.3.1V~3.3V voltage can be supplied by the RF Switch.

ADGM1304JCPZ-RL7 Features


Tape & Reel (TR) package
24 terminations
ADGM1304 family
24 pins
General Purpose RF Type


ADGM1304JCPZ-RL7 Applications


There are a lot of Analog Devices Inc.
ADGM1304JCPZ-RL7 RF Switches applications.


  • General-purpose RF switching
  • Dual-band applications
  • High speed filter selection
  • Digital transceiver front end switch
  • IF switching
  • Tuner modules
  • Antenna diversity switching
  • Cellular/PCS Base Stations
  • ISM
  • Wireless Local Loop
