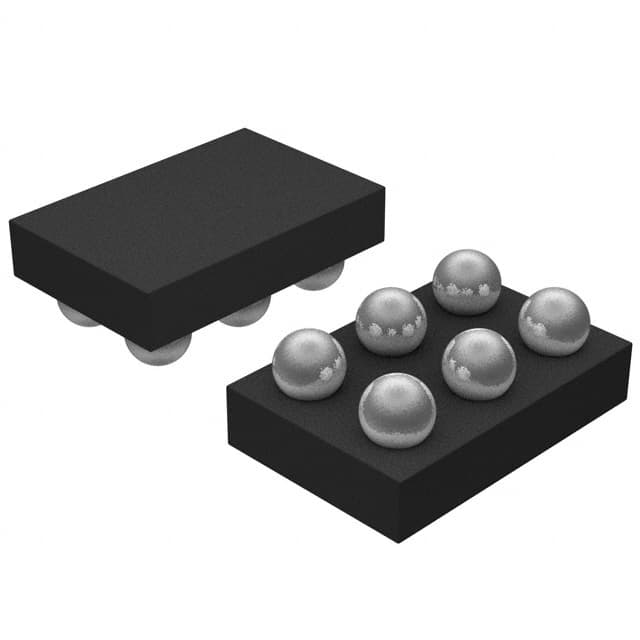

ADI ADG819BCBZ-REEL7

Manufacturer No:

ADG819BCBZ-REEL7

Manufacturer:

ADI

Package:

6-WFBGA, WLCSP

Description:

45ns, 16ns SPDT 600mOhm BOTTOM Analog Switches BREAK-BEFORE-MAKE ADG819 6 Pins 250pA 3V 6-WFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG819BCBZ-REEL7 information

ADI ADG819BCBZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG819BCBZ-REEL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
6-WFBGA, WLCSP

Surface Mount
YES

Number of Pins
6

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Resistance
600mOhm

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Multiplexer or Switches

Max Power Dissipation
5?W

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADG819

Pin Count
6

Number of Outputs
2

Power Supplies
3/5V

Number of Channels
1

Interface
Parallel

Max Supply Voltage
5.5V

Min Supply Voltage
1.8V

Power Dissipation
5?W

Max Supply Current
2?A

Turn On Delay Time
45 ns

Number of Inputs
1

Supply Type
Single

Bandwidth
17MHz

Turn-Off Delay Time
16 ns

On-State Resistance (Max)
600mOhm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
71 dB

Current - Leakage (IS(off)) (Max)
250pA

Channel Capacitance (CS(off), CD(off))
80pF

On-state Resistance Match-Nom
0.06Ohm

Switch Circuit
SPDT

Download datasheets and manufacturer documentation for ADI ADG819BCBZ-REEL7.

Datasheets:

analogdevicesinc-adg819brmz-datasheets-1999.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADG819BCBZ-REEL7 Overview

Shipping overseas is convenient due to the electrical component's packing in 6-WFBGA, WLCSP. This packaging method provides high reliability because it uses advanced packaging techniques. Multiplexers like this are mounted in the Surface Mount position. Multiplexers and demultiplexers have a number of circuits 2:1. Operational temperature extended around -40°C~85°C TA. 6 terminations have been made so far. Due to its 1 channels, the electrical component produces high-quality output. When a voltage supply of 3V is used, the electronic component should be turned on and run. It is injected into the electrical part body with 6 pins. Multiplexers built on a SPDT switching circuit are built. Try searching for the analog switch ic with ADG819 if you are looking for variants. As far as internal resistance is concerned, it has 600mOhm. To find out what the functions of 6 pins are, please refer to their datasheets. In this analog multiplexer, the value is Multiplexer or Switches. Users shouldn't supply more than 5.5V voltage to the switch device. An effective Single supply digital multiplexer. It is recommended that the electrical component receives a voltage of 1.8V. This analogue multiplexer requires a voltage of 1.8V~5.5V when it drains from a single voltage supply. Put voltage above 2?A on the multiplexer to cause damage. The 1 inputs need to be operated in order to work. 17MHz-bandwidths can be used to transfer data between multiplexers. An output of 2 is provided by the digital multiplexer.

ADG819BCBZ-REEL7 Features

1 Channels
Switch Circuit: SPDT
Bandwidth: 17MHz

ADG819BCBZ-REEL7 Applications

There are a lot of Analog Devices Inc.
ADG819BCBZ-REEL7 Analog Switches & Multiplexers ICs applications.

Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
