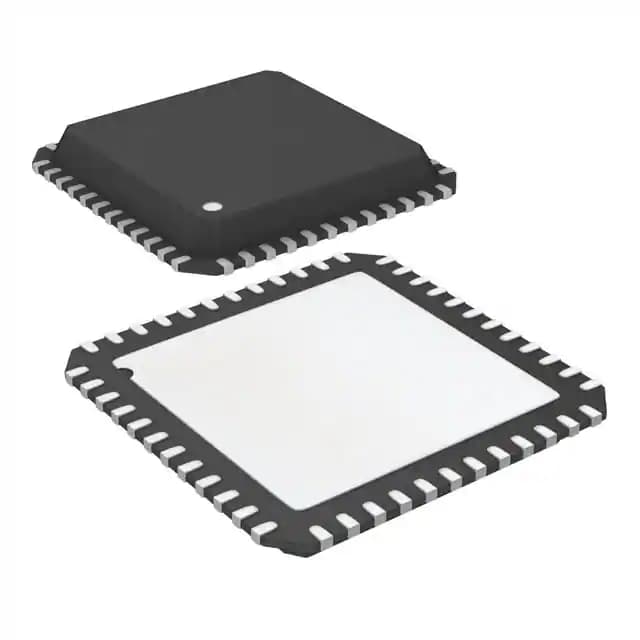

ADI ADG726BCPZ

Manufacturer No:

ADG726BCPZ

Manufacturer:

ADI

Package:

48-VFQFN Exposed Pad, CSP

Description:

5.5Ohm QUAD Analog Switches BREAK-BEFORE-MAKE ADG726 48 Pins 250pA 2.5V 48-VFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG726BCPZ information

ADI ADG726BCPZ technical specifications, attributes, parameters and parts with similar specifications to ADI ADG726BCPZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
48-VFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
48

Operating Temperature
-40°C~85°C TA

Packaging
Tray

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
48

ECCN Code
EAR99

Resistance
5.5Ohm

Additional Feature
ALSO OPERTES WITH 1.8V TO 5.5V SINGLE SUPPLY

Subcategory
Multiplexer or Switches

Max Power Dissipation
100?W

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
ADG726

Pin Count
48

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Number of Channels
16

Interface
Parallel

Number of Circuits
2

Max Supply Voltage
5.5V

Min Supply Voltage
1.8V

Analog IC - Other Type
DIFFERENTIAL MULTIPLEXER

Power Dissipation
100?W

Number of Inputs
32

Voltage - Supply, Single/Dual (±)
1.8V~5.5V ±2.5V

Bandwidth
34MHz

Neg Supply Voltage-Nom (Vsup)
-2.5V

Turn-Off Delay Time
16 ns

-3db Bandwidth
35MHz

On-State Resistance (Max)
5.5Ohm

High Level Output Current
30mA

Dual Supply Voltage
2.5V

Multiplexer/Demultiplexer Circuit
16:1

Download datasheets and manufacturer documentation for ADI ADG726BCPZ.

ADG726BCPZ Overview

Shipping overseas is convenient due to the electrical component's packing in 48-VFQFN Exposed Pad, CSP. This packaging method provides high reliability because it uses advanced packaging techniques. Multiplexers like this are mounted in the Surface Mount position. Multiplexers and demultiplexers have a number of circuits 16:1. Operational temperature extended around -40°C~85°C TA. 48 terminations have been made so far. Due to its 16 channels, the electrical component produces high-quality output. When a voltage supply of 2.5V is used, the electronic component should be turned on and run. It is injected into the electrical part body with 48 pins. It consists of 2 circuits. Try searching for the analog switch ic with ADG726 if you are looking for variants. As far as internal resistance is concerned, it has 5.5Ohm. To find out what the functions of 48 pins are, please refer to their datasheets. In this analog multiplexer, the value is Multiplexer or Switches. Users shouldn't supply more than 5.5V voltage to the switch device. It is recommended that the electrical component receives a voltage of 1.8V. A DIFFERENTIAL MULTIPLEXER analog IC is integrated into the board. Operating voltages range from 5V. The 32 inputs need to be operated in order to work. 34MHz-bandwidths can be used to transfer data between multiplexers. Check out the electrical component's additional features, such as the following: ALSO OPERTES WITH 1.8V TO 5.5V SINGLE SUPPLY.

ADG726BCPZ Features

16 Channels
-3db Bandwidth: 35MHz
Bandwidth: 34MHz
Additional Features: ALSO OPERTES WITH 1.8V TO 5.5V SINGLE SUPPLY

ADG726BCPZ Applications

There are a lot of Analog Devices Inc.
ADG726BCPZ Analog Switches & Multiplexers ICs applications.

Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
