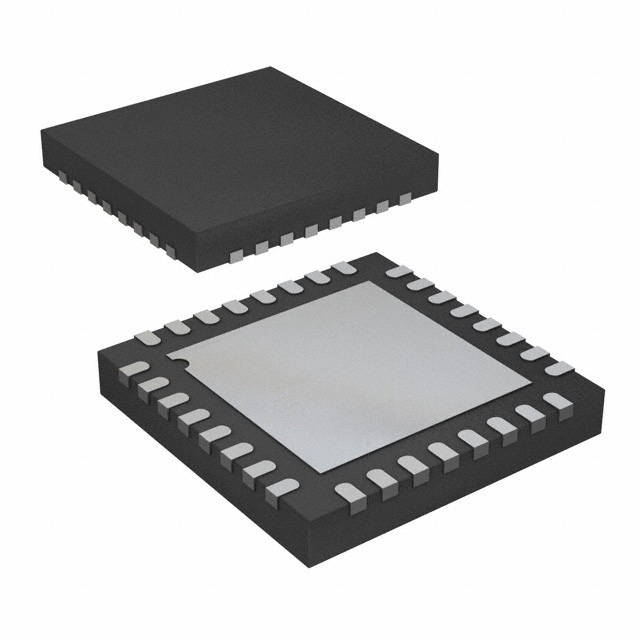

ADI ADG1606BCPZ-REEL7
Manufacturer No:
ADG1606BCPZ-REEL7
Manufacturer:
Package:
32-VFQFN Exposed Pad, CSP
Description:
128ns, 109ns 5Ohm QUAD Analog Switches BREAK-BEFORE-MAKE ADG1606 32 Pins 150pA 5V 32-VFQFN Exposed Pad, CSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADG1606BCPZ-REEL7 information
ADI ADG1606BCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG1606BCPZ-REEL7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 weeks ago)
- Factory Lead Time
- 26 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 32-VFQFN Exposed Pad, CSP
- Surface Mount
- YES
- Number of Pins
- 32
- Operating Temperature
- -40°C~125°C TA
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 32
- ECCN Code
- EAR99
- Resistance
- 5Ohm
- Terminal Finish
- Matte Tin (Sn)
- Max Power Dissipation
- 3.6mW
- Technology
- CMOS
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Number of Functions
- 1
- Supply Voltage
- 5V
- Terminal Pitch
- 0.5mm
- Base Part Number
- ADG1606
- Pin Count
- 32
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 5V
- Number of Channels
- 16
- Interface
- Parallel
- Number of Circuits
- 1
- Max Supply Voltage
- 16V
- Min Supply Voltage
- 3.3V
- Analog IC - Other Type
- SINGLE-ENDED MULTIPLEXER
- Nominal Supply Current
- 300?A
- Power Dissipation
- 3.6mW
- Input Voltage (Max)
- 8V
- Voltage - Supply, Single/Dual (±)
- 3.3V~16V ±3.3V~8V
- Bandwidth
- 22MHz
- Neg Supply Voltage-Nom (Vsup)
- -5V
- Turn-Off Delay Time
- 90 ns
- Max Dual Supply Voltage
- 8V
- On-State Resistance (Max)
- 5Ohm
- Min Dual Supply Voltage
- 3.3V
- Dual Supply Voltage
- 5V
- Multiplexer/Demultiplexer Circuit
- 16:1
- Off-state Isolation-Nom
- 62 dB
- Current - Leakage (IS(off)) (Max)
- 150pA
Download datasheets and manufacturer documentation for ADI ADG1606BCPZ-REEL7.
PCN Assembly/Origin:
ConflictMineralStatement:
ADG1606BCPZ-REEL7 Overview
As the electronic part is packed in 32-VFQFN Exposed Pad, CSP, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). The multiplexer is located in Surface Mount. 16:1 is the number of circuits in the multiplexer and demultiplexer. Operating temperature extended to -40°C~125°C TA. Total terminations are 32. The electronic part provides high-quality output because it has 16 channels. Powered by a 5V voltage supply, the electrical part should be switched on and run. The electrical component body receives 32 pins. There are 1 circuits in this switch device. Try searching with ADG1606 to find analog multiplexer variants. An switch multiplexer with 5Ohm internal resistance has a value of 5Ohm. Datasheets for 32 pin functions are available upon request. Multiplexers should not be powered above 16V in normal situations. The lowest voltage the electronic part should receive is 3.3V. Despite this switch device's dual supply capability, its voltage should not exceed 8V. It is recommended that you attach at least 3.3V to your dual power supply. An analog IC with the number SINGLE-ENDED MULTIPLEXER is integrated into this board. COMMON OUTPUT outputs are utilized by this digital multiplexer. 5V operating voltages can be used with this electrical part. There are 22MHz bandwidths for data transfer.
ADG1606BCPZ-REEL7 Features
16 Channels
Bandwidth: 22MHz
ADG1606BCPZ-REEL7 Applications
There are a lot of Analog Devices Inc.
ADG1606BCPZ-REEL7 Analog Switches & Multiplexers ICs applications.
- Imaging
- Ultrasound
- Audio and video switching
- Automatic test equipment
- Precision data acquisition
- Battery-powered systems
- Sample-and-hold systems
- Communication systems
- Data Acquisition Systems
- Relay Replacement
