ADI ADG1236YCPZ-REEL7

Manufacturer No:

ADG1236YCPZ-REEL7

Manufacturer:

ADI

Package:

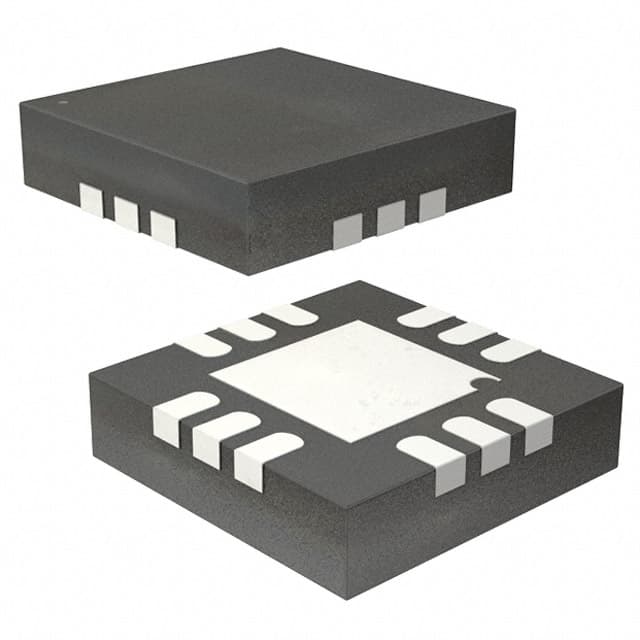

12-WFQFN Exposed Pad, CSP

Description:

150ns, 90ns SPDT 190Ohm QUAD Analog Switches BREAK-BEFORE-MAKE ADG1236 12 Pins 100pA 15V 12-WFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADG1236YCPZ-REEL7 information

ADI ADG1236YCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADG1236YCPZ-REEL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 months ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
12-WFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
12

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
12

ECCN Code
EAR99

Resistance
190Ohm

Terminal Finish
Matte Tin (Sn)

Subcategory
Multiplexer or Switches

Max Power Dissipation
3.5mW

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
ADG1236

Pin Count
12

Number of Outputs
4

Qualification Status
Not Qualified

Operating Supply Voltage
12V

Number of Channels
2

Interface
Parallel

Max Supply Voltage
16.5V

Min Supply Voltage
5V

Test Frequency
1MHz

Operating Supply Current
170?A

Power Dissipation
3.5mW

Max Supply Current
230?A

Turn On Delay Time
150 ns

Supply Type
Dual, Single

Bandwidth
1 GHz

Neg Supply Voltage-Nom (Vsup)
-15V

Turn-Off Delay Time
90 ns

Max Dual Supply Voltage
16.5V

On-State Resistance (Max)
190Ohm

Min Dual Supply Voltage
5V

Dual Supply Voltage
15V

Download datasheets and manufacturer documentation for ADI ADG1236YCPZ-REEL7.

ADG1236YCPZ-REEL7 Overview

This electronic part is conveniently packaged in 12-WFQFN Exposed Pad, CSP, making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). A switch device like this is mounted in Surface Mount. 2:1 is the ratio of multiplexer to demultiplexer circuits. An extended operating temperature of -40°C~125°C TA degrees Celsius. In total, there have been 12 terminations. A 2 channel electronic part produces high-quality output. A 15V voltage supply should turn on and run the electronic component. An injection of 12 pins is performed into the body of the electrical component. Unlike digital switches, these are based on SPDT switching circuits. Try searching for ADG1236 variants of the analog switch ic. Analog switches have 190Ohm internal resistance. To find out what the 12 pins do, please refer to the datasheets. It is a typical Multiplexer or Switches analog multiplexer. Users should never supply a voltage higher than 16.5V to a switch device. Analog switch ics with Dual, Single supply type are cost-effective. There should be 5V voltage fed to the electrical part below 5V. It would be sufficient to run this analogue multiplexer with 170?A current. The switch multiplexer may be damaged if it is exposed to voltage greater than 230?A. For this switch device, it is feasible to have two supplies. However, the voltage should not exceed 16.5V. The voltage should be at least 5V if you are using dual power supplies. Operating voltages of 12V are compatible with the electrical part. In 1 GHz-bandwidths, data can be transferred. Multiplexer ics with 4 outputs are available.

ADG1236YCPZ-REEL7 Features

2 Channels
Switch Circuit: SPDT
170?A Supply Current
Bandwidth: 1 GHz

ADG1236YCPZ-REEL7 Applications

There are a lot of Analog Devices Inc.
ADG1236YCPZ-REEL7 Analog Switches & Multiplexers ICs applications.

Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
