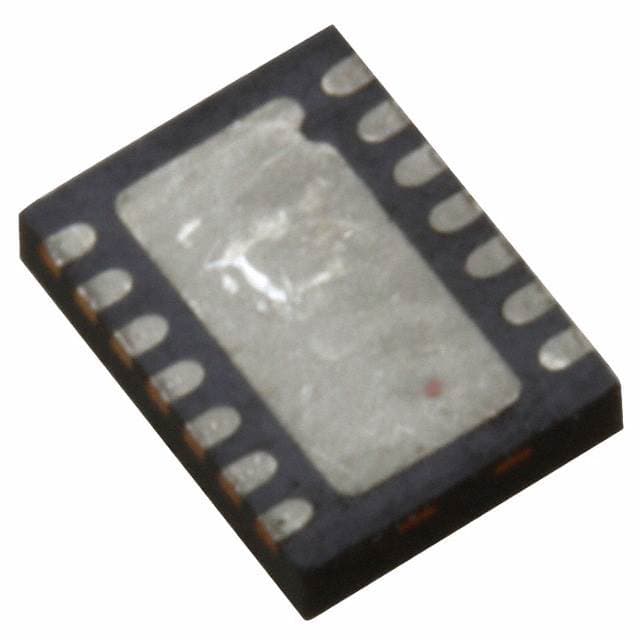

ADI ADD5207ACPZ-RL
Manufacturer No:
ADD5207ACPZ-RL
Manufacturer:
Package:
14-WFDFN Exposed Pad, CSP
Description:
12V 0.5mm Tin PMIC ADD5207 14 Pin 1MHz 12V 14-WFDFN Exposed Pad, CSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADD5207ACPZ-RL information
ADI ADD5207ACPZ-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADD5207ACPZ-RL.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 14-WFDFN Exposed Pad, CSP
- Number of Pins
- 14
- Operating Temperature
- -25°C~85°C TA
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 14
- ECCN Code
- EAR99
- Type
- DC DC Regulator
- Applications
- Backlight
- Subcategory
- Display Drivers
- Technology
- DMOS
- Terminal Position
- DUAL
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 12V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADD5207
- Pin Count
- 14
- Number of Outputs
- 4
- Qualification Status
- Not Qualified
- Power Supplies
- 12V
- Max Supply Voltage
- 21V
- Max Output Voltage
- 36V
- Topology
- Step-Up (Boost)
- Output Current per Channel
- 25mA
- Min Output Voltage
- 5.6V
- Internal Switch(s)
- Yes
- fmax-Min
- 0.0092 MHz
- Dimming
- PWM
- Number of Segments
- 20
- Switching Frequency
- 1MHz
- Voltage - Supply (Max)
- 21V
- Voltage - Supply (Min)
- 6V
- Height Seated (Max)
- 0.8mm
- Width
- 3mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI ADD5207ACPZ-RL.
ConflictMineralStatement:
ADD5207ACPZ-RL Overview
There is a 14-WFDFN Exposed Pad, CSP package on the board that is used to save space. The LED driver's design uses 4 outputs.Mounting is done according to the Surface Mount method.With high efficiency and reliable performance, it emerges as a DC DC Regulator.When the temperature is -25°C~85°C TA, it can work normally.There are significant benefits for Backlight.In the 1MHz frequency range, it operates.It is designed to work with 14 terminations.Its configuration is based on 14 pins.It is likely that undetermined failures will occur if the voltage supply is less than 6V.20 segments exist.The mount is on its way to Surface Mount.The LED driver can be found under the base part number ADD5207.An acceptable maximum value for the supply voltage is 21V.14 pins are included in it.Supply voltage can be set to a maximum value of 21V.As a result of its characteristics, it is also classified as Display Drivers.Having the switching frequency at 1MHz enables this electronic component to perform at its best.Ideally, the output voltage should not exceed 36V.This device maintains a minimal voltage of 5.6V.
ADD5207ACPZ-RL Features
Available in the 14-WFDFN Exposed Pad, CSP package
Operating temperature of -25°C~85°C TA
Frequency of 1MHz
Supply voltage of 12V
Switching frequency of 1MHz
ADD5207ACPZ-RL Applications
There are a lot of Analog Devices Inc.
ADD5207ACPZ-RL LED Driver ICs applications.
- Refrigeration lighting
- Portable lighting
- Gallery lighting
- Museum lighting
- High-end retail lighting
- Medical surgery lighting
- Replacement lamps
- Panel lighting
- Down lights
- Linear fluorescent
