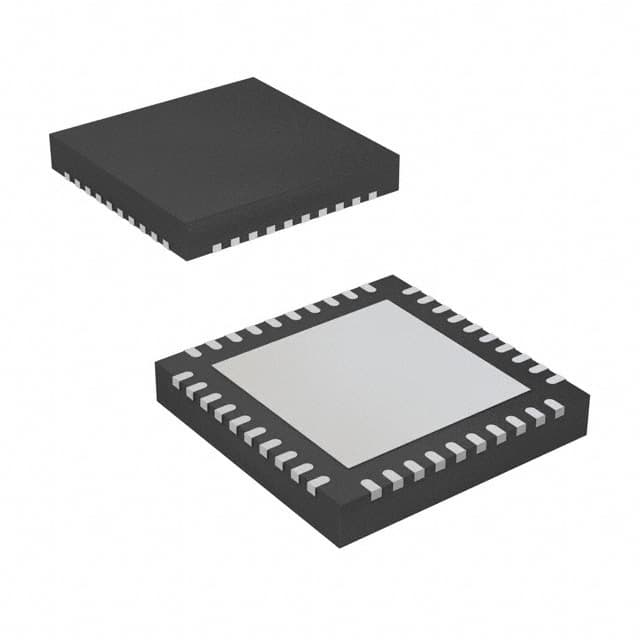

ADI ADCLK950BCPZ

Manufacturer No:

ADCLK950BCPZ

Manufacturer:

ADI

Package:

40-VFQFN Exposed Pad, CSP

Description:

1 Circuit 3.3V 2:10 Clock Buffer QUAD ADCLK950 40 Pins SiGe Series 40-VFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADCLK950BCPZ information

ADI ADCLK950BCPZ technical specifications, attributes, parameters and parts with similar specifications to ADI ADCLK950BCPZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
40-VFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
40

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
SiGe

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
40

ECCN Code
EAR99

Type
Fanout Buffer (Distribution), Multiplexer

Subcategory
Clock Drivers

Technology
BIPOLAR

Voltage - Supply
2.97V~3.63V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Frequency
4.8GHz

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADCLK950

Output
LVPECL

Pin Count
40

Number of Outputs
10

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.63V

Power Supplies
3.3V

Number of Circuits
1

Nominal Supply Current
346mA

Max Supply Current
390mA

Family
950

Number of Inputs
2

Input
CML, CMOS, LVDS, LVPECL

Ratio - Input:Output
2:10

Differential - Input:Output
Yes/Yes

Same Edge Skew-Max (tskwd)
0.045 ns

Height
950?m

Length
6mm

Width
6mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for ADI ADCLK950BCPZ.

ADCLK950BCPZ Overview

There is a case available for the cut smart buffer in 40-VFQFN Exposed Pad, CSP. This package is packaged in the form of a Tray. It has 40 terminations in it, which means that it is terminated. Supply voltages of 3.3V are capable of achieving high efficiency. In this case, it will be mounted by Surface Mount. A classification of Fanout Buffer (Distribution), Multiplexer is assigned to this electronic part. Setting the temperature to -40°C~85°C will ensure reliable performance. Ideally, it should be able to operate from 2.97V~3.63V volts. There are 40 pins on the clock buffer. There is a value of LVPECL as the output. During operation, 40 pins are used. As a member of the ADCLK950 family, it falls under that category. I have enclosed this circuit clock in Clock Drivers for your convenience. A member of the 950 family, this clock buffer is a digital camera. Vsup is set to 3.63V as the maximum supply voltage. As a default, it is set to output 10. The timeing clock is powered by a power supply of 3.3V volts. A electronic part of this series belongs to the SiGe family. As long as the frequency is set to 4.8GHz, excellent accuracy can be maintained. It is configured when the input is 2.

ADCLK950BCPZ Features

40 terminations
The operating temperature of -40°C~85°C degrees
Clock Drivers subcategory
at 4.8GHz frequency

ADCLK950BCPZ Applications

There are a lot of Analog Devices Inc.
ADCLK950BCPZ Clock Buffers & Drivers applications.

Clock signal format conversion
Clock signal level shifting
High performance communication system
Data center
Cloud computing
Network
High speed industry
High-end consumer electronics
Data communication
Telecommunications
