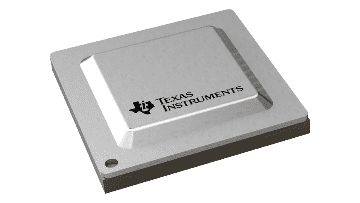

Texas Instruments ADC12DL500ACF
Manufacturer No:
ADC12DL500ACF
Manufacturer:
Texas Instruments
Package:
Description:
12-bit, dual 500MSPS or single 1GSPS analog-to-digital converter (LVDS interface)
Quantity:
In Stock :5883
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Fri, May 29 - Sat, May 30, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
ADC12DL500ACF Information
Texas Instruments ADC12DL500ACF technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments ADC12DL500ACF.
- Type
- Parameter
- Sample rate (max) (Msps)
- 500, 1000
- Resolution (Bits)
- 12
- Number of input channels
- 1, 2
- Interface type
- DDR LVDS, Parallel LVDS
- Analog input BW (MHz)
- 8000
- Features
- Ultra High Speed
- Rating
- Catalog
- Peak-to-peak input voltage range (V)
- 0.8
- Power consumption (typ) (mW)
- 2500
- Architecture
- Folding Interpolating
- Type
- Parameter
- SNR (dB)
- 56.8
- ENOB (Bits)
- 9
- SFDR (dB)
- 69
- Operating temperature range (°C)
- -40 to 85
- Input buffer
- Yes
- Package
- FCBGA (ACF)
- Pins
- 256
- Size
- 289 mm² 17 x 17
- REACH Status
- Yes
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Texas Instruments ADC12DL500ACF.
Data sheet:
Technical article:
The ADC12DL500, ADC12DL1500 and ADC12DL2500 are a family of analog-to-digital converters (ADC) that can sample up to 500MSPS, 1.5GSPS, and 2.5GSPS in dual-channel mode and up to 1GSPS, 3GSPS, and 5GSPS in single-channel mode. Programmable tradeoffs in channel count (dual-channel mode) and sample rate (single-channel mode) allow development of flexible hardware that meets the needs of both high-channel count or wide instantaneous signal bandwidth applications.
The devices uses a low-latency, low-voltage differential signaling (LVDS) interface for latency sensitive applications or when the simplicity of LVDS is preferred. The interface uses up to 48 data pairs, four double data rate (DDR) clocks, and four strobe signals arranged in four 12-bit data buses. The interface supports signaling rates of up to 1.6Gbps. Strobe signals simplify synchronization across buses and between multiple devices. The strobe is generated internally and can be reset at a deterministic time by the SYSREF input. Multi-device synchronization is further eased by innovative synchronization features such as noiseless aperture delay (TAD) adjustment and SYSREF windowing.
- ADC core:
- 12-Bit resolution
- Up to 1GSPS, 3GSPS, 5GSPS in single-channel mode
- Up to 500MSPS, 1.5GSPS, 2.5GSPS in dual-channel mode
- Internal dither for low-magnitude, high-order harmonics
- Low-latency LVDS interface:
- Total latency: < 10ns
- Up to 48 data pairs at 1.6Gbps
- Four DDR data clocks
- Strobe signals simplify synchronization
- Noise floor (no input, VFS = 1VPP-DIFF):
- Dual-channel mode: -143.5, -148, -149.8dBFS/Hz
- Single-channel mode: -146.2, -150.3, -152.2dBFS/Hz
- Buffered analog inputs with VCMI of 0V:
- Analog input bandwidth (–3dB): 8GHz
- Full-scale input voltage (VFS, default): 0.8VPP
- Noiseless aperture delay (TAD) adjustment:
- Precise sampling control: 19fs step
- Simplifies synchronization and interleaving
- Temperature and voltage invariant delays
- Easy-to-use synchronization features:
- Automatic SYSREF timing calibration
- Timestamp for sample marking
- Power consumption: 2.6, 2.8, 3W
