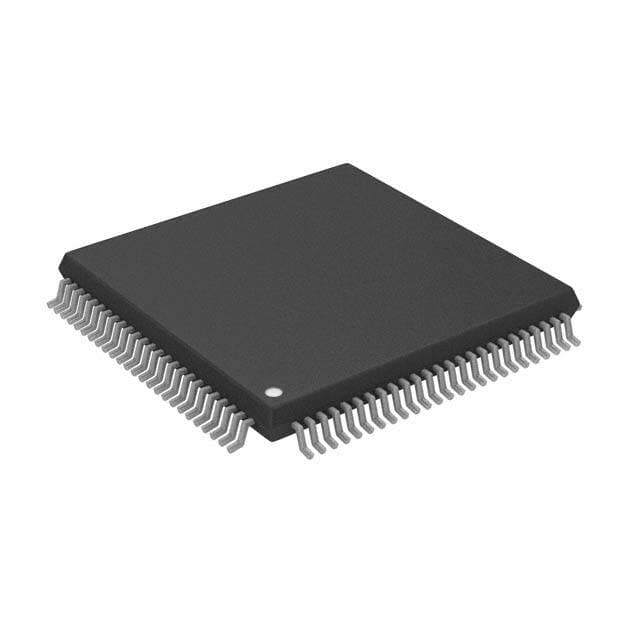

ADI ADAU1446YSTZ-3A-RL
Manufacturer No:
ADAU1446YSTZ-3A-RL
Manufacturer:
Package:
100-LQFP
Description:
0.5mm Tin CPLD SigmaDSP® Series ADAU1446 100 Pin 172MHz 100-LQFP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADAU1446YSTZ-3A-RL information
ADI ADAU1446YSTZ-3A-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADAU1446YSTZ-3A-RL.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 100-LQFP
- Number of Pins
- 100
- Weight
- 1.319103g
- Operating Temperature
- -40°C~105°C TA
- Packaging
- Tape & Reel (TR)
- Series
- SigmaDSP®
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 100
- ECCN Code
- EAR99
- Type
- Sigma
- Additional Feature
- IT CAN OPERATES WITH 3.3V ANALOG SUPPLY AND 1.8V DIGITAL SUPPLY
- HTS Code
- 8542.31.00.01
- Subcategory
- Other Consumer ICs
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 225
- Terminal Pitch
- 0.5mm
- Frequency
- 172MHz
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- ADAU1446
- Pin Count
- 100
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 3.3V
- Supply Voltage-Max (Vsup)
- 3.63V
- Supply Voltage-Min (Vsup)
- 2.97V
- Interface
- I2C, SPI
- Voltage - I/O
- 3.30V
- Number of GPIO
- 12
- Voltage - Core
- 1.80V
- On Chip Data RAM
- 46kB
- Length
- 14mm
- Height Seated (Max)
- 1.6mm
- Width
- 14mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI ADAU1446YSTZ-3A-RL.
Datasheets:
PCN Assembly/Origin:
ConflictMineralStatement:
ADAU1446YSTZ-3A-RL Overview
An electronic component available in package 100-LQFP.Tape & Reel (TR) packaging is provided for it.Its Sigma status makes it ideal for a wide range of applications.It is mounted in the direction of Surface Mount as shown in the image below.If it is operating at the temperature of -40°C~105°C TA, then it will be operating normally.This refers to the analog voltage range that can be input or output from 3.30V.There are several digital signal processors in the SigmaDSP® series, including this one.In terms of its uses, it has 100 terminations.The 100 component has pins.There are 100 pins in its configuration.The base part number ADAU1446 can be used to identify many associated parts.To operate at 172MHz frequency, the device has a specific design.Mounting is accomplished using Surface Mount.According to its specific characteristics, this device is classified in the subcategory Other Consumer ICs.A supply voltage of 3.3V is required for its operation.It can also provide more features of IT CAN OPERATES WITH 3.3V ANALOG SUPPLY AND 1.8V DIGITAL SUPPLY.A 1 function is available in this device.12 GPIOs are used to provide an easy way to access the device's internal properties.
ADAU1446YSTZ-3A-RL Features
Supplied in the 100-LQFP package
Operating supply voltage of 3.3V
ADAU1446YSTZ-3A-RL Applications
There are a lot of Analog Devices Inc.
ADAU1446YSTZ-3A-RL DSP applications.
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
- Biomedical engineering
