ADI ADAU1442YSVZ-3A-RL

Manufacturer No:

ADAU1442YSVZ-3A-RL

Manufacturer:

ADI

Package:

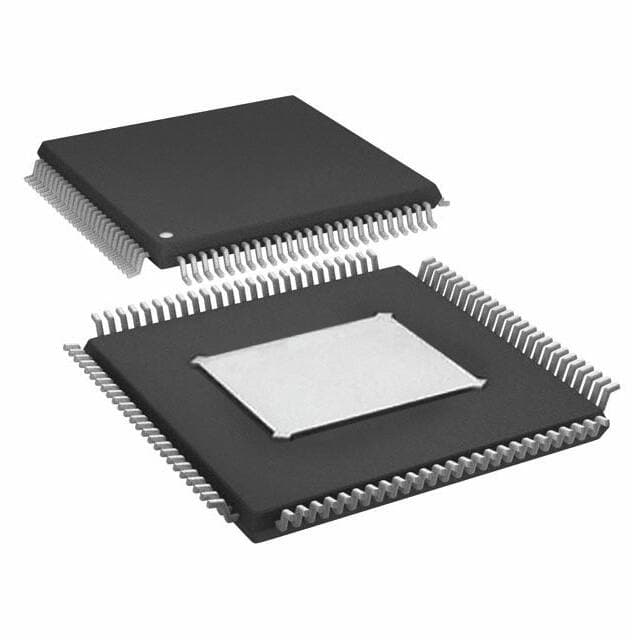

100-TQFP Exposed Pad

Description:

0.5mm Tin CPLD SigmaDSP® Series ADAU1442 100 Pin 172MHz 100-TQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADAU1442YSVZ-3A-RL information

ADI ADAU1442YSVZ-3A-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADAU1442YSVZ-3A-RL.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
100-TQFP Exposed Pad

Number of Pins
100

Weight
657.000198mg

Operating Temperature
-40°C~105°C TA

Packaging
Tape & Reel (TR)

Series
SigmaDSP®

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
EAR99

Type
Sigma

Additional Feature
IT CAN OPERATES WITH 3.3V ANALOG SUPPLY AND 1.8V DIGITAL SUPPLY

HTS Code
8542.31.00.01

Subcategory
Other Consumer ICs

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Frequency
172MHz

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADAU1442

Pin Count
100

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.63V

Supply Voltage-Min (Vsup)
2.97V

Interface
I2C, SPI

Voltage - I/O
3.30V

Number of GPIO
12

Voltage - Core
1.80V

On Chip Data RAM
46kB

Length
14mm

Height Seated (Max)
1.2mm

Width
14mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADAU1442YSVZ-3A-RL.

ADAU1442YSVZ-3A-RL Overview

It is a type of electronic component available in package 100-TQFP Exposed Pad.There is a packaging method of Tape & Reel (TR) provided with it.Due to its membership in Sigma, it is ideally suited for a wide range of uses.Surface Mount is mounted in a manner that allows it to be moved.The operation of the device at the temperature of -40°C~105°C TA ensures the normal operation of the device.The digital voltage range of 3.30V refers to the voltage that can be input or output.The SigmaDSP® series contains this digital signal processor.Its uses have 100 terminations.Pins are available for 100 components.In its configuration, 100 pins can be found.Many related parts can be identified by using the ADAU1442 part number as a base.172MHz is a frequency at which the device operates according to a specific design.Surface Mount is used as the mounting method.As a result of its specific characteristics, this device can be classified under the Other Consumer ICs subcategory.The device operates on a voltage of 3.3V as its supply voltage.A further set of features can be provided by this electronic part for IT CAN OPERATES WITH 3.3V ANALOG SUPPLY AND 1.8V DIGITAL SUPPLY as well.In this device, there are 1 functions.In order to access the internal properties of the device, there are 12 GPIO acting as interfaces.

ADAU1442YSVZ-3A-RL Features

Supplied in the 100-TQFP Exposed Pad package
Operating supply voltage of 3.3V

ADAU1442YSVZ-3A-RL Applications

There are a lot of Analog Devices Inc.
ADAU1442YSVZ-3A-RL DSP applications.

Seismology
Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
