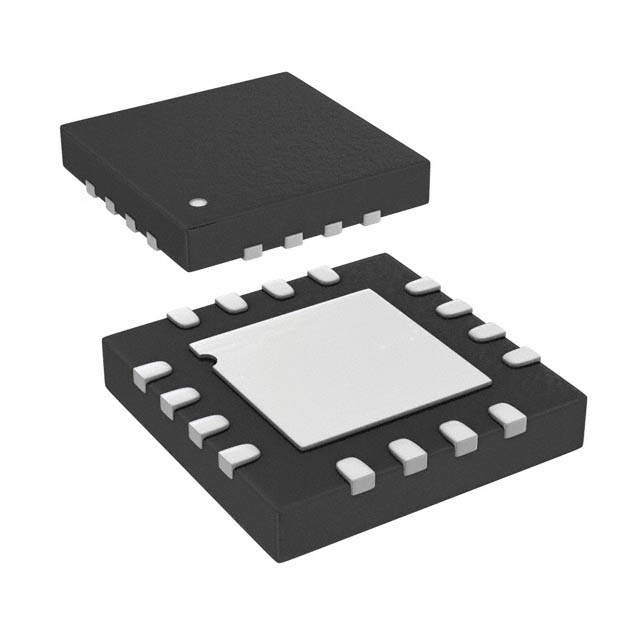

ADI ADA4853-3YCPZ-RL
Manufacturer No:
ADA4853-3YCPZ-RL
Manufacturer:
Package:
16-WFQFN Exposed Pad, CSP
Description:
16 Terminations 2.65V~5V 16 Pin ADA4853 Video Amps Modules 3 Functions 120V/?s Min -40°C Max 105°C
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADA4853-3YCPZ-RL information
ADI ADA4853-3YCPZ-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADA4853-3YCPZ-RL.
- Type
- Parameter
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-WFQFN Exposed Pad, CSP
- Number of Pins
- 16
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Max Operating Temperature
- 105°C
- Min Operating Temperature
- -40°C
- Applications
- Voltage Feedback
- Subcategory
- Operational Amplifier
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 3
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADA4853
- Pin Count
- 16
- Output Type
- Rail-to-Rail
- Operating Supply Voltage
- 3V
- Number of Elements
- 3
- Temperature Grade
- INDUSTRIAL
- Operating Supply Current
- 4.2mA
- Nominal Supply Current
- 1.4mA
- Quiescent Current
- 1.3mA
- Slew Rate
- 120V/?s
- Amplifier Type
- OPERATIONAL AMPLIFIER
- Common Mode Rejection Ratio
- 88 dB
- Voltage - Supply, Single/Dual (±)
- 2.65V~5V
- Output Current per Channel
- 160mA
- Supply Type
- Single
- Input Offset Voltage (Vos)
- 4.1mV
- Bandwidth
- 100MHz
- Gain Bandwidth Product
- 55MHz
- Voltage Gain
- 80dB
- Power Supply Rejection Ratio (PSRR)
- 80dB
- Settling Time
- 54 ns
- Input Capacitance
- 600fF
- Input Bias Current
- 1.7?A
- Height Seated (Max)
- 0.9mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI ADA4853-3YCPZ-RL.
ConflictMineralStatement:
ADA4853-3YCPZ-RL Overview
In the form of a Tape & Reel (TR), class d amplifier is packaged.The 16-WFQFN Exposed Pad, CSP package contains class d amp, in order to reduce space consumption.It is a very good choice for Voltage Feedback due to its high performance.Based on Surface Mount, audio power amplifier is mounted on the PCB.Audio amp can be located by using ADA4853 as the base part number.There is 16 pin count on this board.There are 16 terminations on digital amplifier.It is included in Operational Amplifier.An electric current of 4.2mA is supplied to audio amplifier.The board is constructed using 16 pins.Operating temperatures must be lower than 105°C.Ideally, the operating temperature should be -40°C.The mounting method used is Surface Mount.This audio amplifier is equipped with a type OPERATIONAL AMPLIFIER amplifier.As long as audio amplifier ic is used, 3V supply voltage will be provided.A supply type of Single is associated with it.It is observed that the audio amplifier ic gains a voltage of 80dB.A quiescent current of 1.3mA is consumed by the audio amplifier ic, and external influences are not a factor.A total of 3 elements are present in audio amplifier.
ADA4853-3YCPZ-RL Features
Operational Amplifier subcategory
16 pins
ADA4853-3YCPZ-RL Applications
There are a lot of Analog Devices Inc.
ADA4853-3YCPZ-RL Video Amps and Modules applications.
- Car Audio
- Premium Audio
- External Audio Amplifiers
- Body Control Modules
- High-Fidelity (HiFi) Headphone Drivers
- Professional Audio Equipment
- Analog and Digital Mixing Consoles
- Audio Test and Measurement
- Telematics control unit
- Emergency call (eCall)
