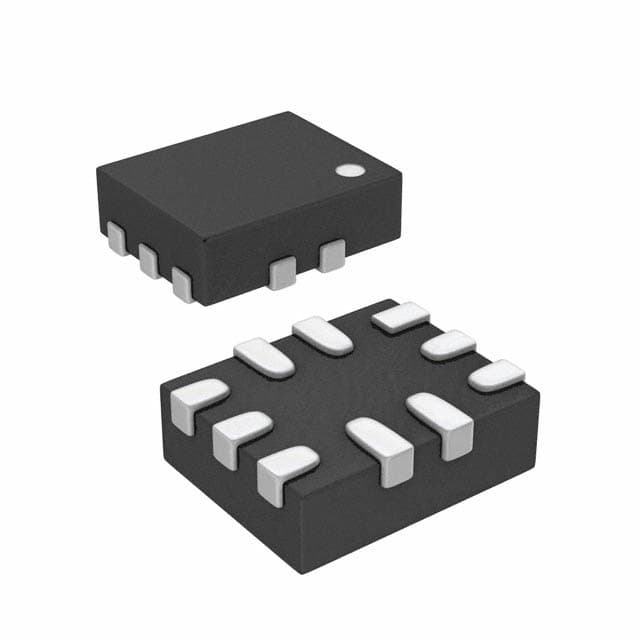

ADI ADA4691-2ACPZ-R7

Manufacturer No:

ADA4691-2ACPZ-R7

Manufacturer:

ADI

Package:

10-UFQFN, CSP

Description:

2 Channels 55mA per Channel 0.5pA 98 dB Instrumentational OP Amps 0.00036?A 3V 2.7V~5.5V ±1.35V~2.5V ADA4691 10 Pins 10-UFQFN, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADA4691-2ACPZ-R7 information

ADI ADA4691-2ACPZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADA4691-2ACPZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Gold

Mounting Type
Surface Mount

Package / Case
10-UFQFN, CSP

Surface Mount
YES

Number of Pins
10

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Subcategory
Operational Amplifier

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.5mm

Base Part Number
ADA4691

Pin Count
10

Qualification Status
Not Qualified

Output Type
Rail-to-Rail

Operating Supply Voltage
3V

Number of Channels
2

Operating Supply Current
180?A

Quiescent Current
180?A

Slew Rate
1.3V/?s

Amplifier Type
Voltage Feedback

Common Mode Rejection Ratio
98 dB

Current - Input Bias
0.5pA

Voltage - Supply, Single/Dual (±)
2.7V~5.5V ±1.35V~2.5V

Output Current per Channel
55mA

Input Offset Voltage (Vos)
2.5mV

Bandwidth
3.6MHz

Unity Gain BW-Nom
3600 kHz

Voltage Gain
110dB

Average Bias Current-Max (IIB)
0.00036?A

Power Supply Rejection Ratio (PSRR)
90dB

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
6V

Download datasheets and manufacturer documentation for ADI ADA4691-2ACPZ-R7.

Datasheets:

analogdevicesinc-ada46912acbzr7-datasheets-2811.pdf

analogdevices-ada46912acpzr7-datasheets-8892.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADA4691-2ACPZ-R7 Overview

In order to protect the op amps, a 10-UFQFN, CSP case is used. There are two types of operational amplifiers in this circuit. In the case of Tape & Reel (TR) cases, linear amplifier will be delivered. In recent months, the number of terminations has approached 10. It consists of a total of 10 pins in total. It would be helpful if you could remember that this op amp ic should be powered by an 5V battery. A type of Operational Amplifier buffer op amp is what this device is specifically, to be more precise. It has 10 pins that make up the linear amplifier. In terms of input offset voltage, operational amplifier rates 2.5mV. This electronic component is recommended to be mounted using the mounting type Surface Mount. It is recommended that this op amp ic be operated at a temperature no higher than -40°C~125°C for optimal performance. In order for this instrumentation amplifier to operate, the supply current needs to be between 180?A and 10 . Maintain 110dB as the voltage gain. Buffer op amp is equipped with 2 channels on the device. As one of the many benefits of this buffer amplifier, it puts out Rail-to-Rail signals, which is one of the many benefits it offers. The operating supply voltage of the buffer op amp is rated at 3V. As a result of this, the buffer amplifier is packed in TAPE AND REEL. There is an 180?A quiescent current in linear amplifier.

ADA4691-2ACPZ-R7 Features

10 Pins
supply voltage of 5V
110dB voltage gain
Output Type: Rail-to-Rail

ADA4691-2ACPZ-R7 Applications

There are a lot of Analog Devices Inc.
ADA4691-2ACPZ-R7 Instrumentational OP Amps applications.

Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
