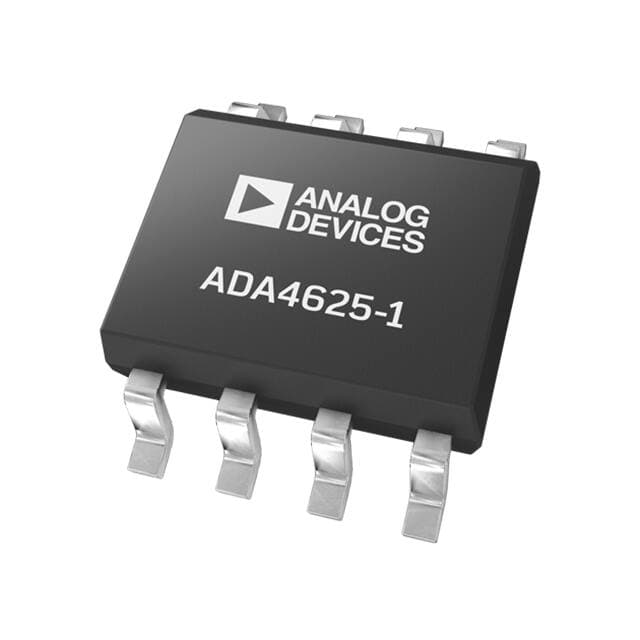

ADI ADA4625-1ARDZ
Manufacturer No:
ADA4625-1ARDZ
Manufacturer:
Package:
8-SOIC (0.154, 3.90mm Width) Exposed Pad
Description:
33mA per Channel 15pA 94 dB Instrumentational OP Amps 0.0055μA 5V~36V ±2.5V~18V ADA4625 8 Pins 8-SOIC (0.154, 3.90mm Width) Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADA4625-1ARDZ information
ADI ADA4625-1ARDZ technical specifications, attributes, parameters and parts with similar specifications to ADI ADA4625-1ARDZ.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 26 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 8-SOIC (0.154, 3.90mm Width) Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 8
- Operating Temperature
- -40°C~125°C
- Packaging
- Tube
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 8
- Terminal Finish
- Matte Tin (Sn)
- Subcategory
- Operational Amplifier
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 18V
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADA4625
- Pin Count
- 8
- Output Type
- Rail-to-Rail
- Current - Supply
- 4mA
- Slew Rate
- 48V/μs
- Amplifier Type
- J-FET
- Common Mode Rejection Ratio
- 94 dB
- Current - Input Bias
- 15pA
- Voltage - Supply, Single/Dual (±)
- 5V~36V ±2.5V~18V
- Output Current per Channel
- 33mA
- Input Offset Voltage (Vos)
- 100μV
- Gain Bandwidth Product
- 18MHz
- Neg Supply Voltage-Nom (Vsup)
- -18V
- Unity Gain BW-Nom
- 18000 kHz
- Voltage Gain
- 150dB
- Average Bias Current-Max (IIB)
- 0.0055μA
- Supply Voltage Limit-Max
- 20V
- Voltage - Input Offset
- 15μV
- -3db Bandwidth
- 16MHz
- Neg Supply Voltage-Max (Vsup)
- -20V
- Max Junction Temperature (Tj)
- 150°C
- Height
- 1.75mm
- Length
- 4.9mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI ADA4625-1ARDZ.
Datasheets:
ConflictMineralStatement:
ADA4625-1ARDZ Overview
The linear amplifier is packaged in a 8-SOIC (0.154, 3.90mm Width) Exposed Pad case. This is a J-FET type op amp. Linear amplifier is delivered in a Tube case. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. Please take in mind that this instrumentation amplifier should be run at 18V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 100μV. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -40°C~125°C. Voltage gain should remain at 150dB. There are 1 circuits on this op amp. This op amp ic outputs Rail-to-Rail signals, which is one of the many benefits it has. It is recommended that this electronic component be used with an 4mA supply.
ADA4625-1ARDZ Features
8 Pins
supply voltage of 18V
150dB voltage gain
Output Type: Rail-to-Rail
ADA4625-1ARDZ Applications
There are a lot of Analog Devices Inc.
ADA4625-1ARDZ Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
