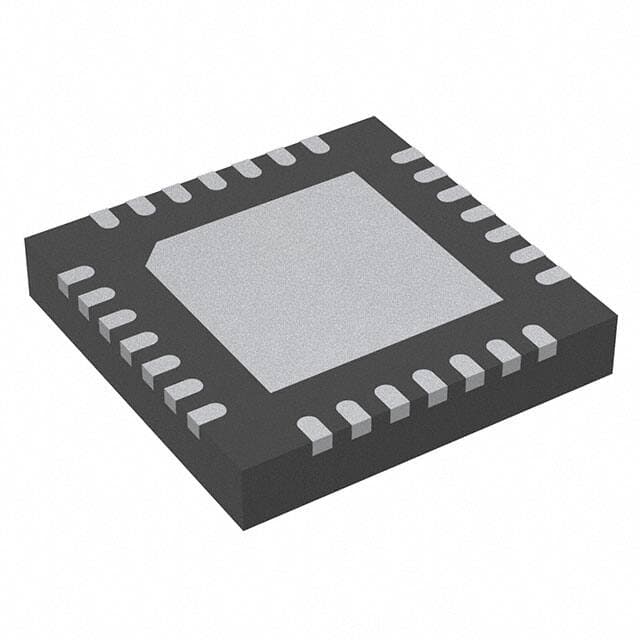

ADI ADA4254ACPZ-RL

Manufacturer No:

ADA4254ACPZ-RL

Manufacturer:

ADI

Package:

28-WFQFN Exposed Pad, CSP

Description:

450pA Instrumentational OP Amps ±5V~28V 28 Pins 28-WFQFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADA4254ACPZ-RL information

ADI ADA4254ACPZ-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADA4254ACPZ-RL.

Type
Parameter

Factory Lead Time
2 Weeks

Mounting Type
Surface Mount

Package / Case
28-WFQFN Exposed Pad, CSP

Surface Mount
YES

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Pbfree Code
no

Part Status
Active

Number of Terminations
28

Subcategory
Instrumentation Amplifier

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.5mm

Reach Compliance Code
compliant

Pin Count
28

JESD-30 Code
S-XQCC-N28

Output Type
Differential

Number of Circuits
1

Slew Rate
1.9V/μs

Amplifier Type
Zero-Drift

Current - Input Bias
450pA

Voltage - Supply, Single/Dual (±)
±5V~28V

Voltage - Input Offset
3μV

Current - Output / Channel
11mA

-3db Bandwidth
2.3MHz

Input Offset Current-Max (IIO)
0.0035μA

Voltage Gain-Min
0.0625

Voltage Gain-Nom
1

Voltage Gain-Max
128

Length
5mm

Height Seated (Max)
0.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI ADA4254ACPZ-RL.

Datasheets:

analogdevicesinc-ada4254acpz-datasheets-5331.pdf

ADA4254ACPZ-RL Overview

Op amp is packaged in 28-WFQFN Exposed Pad, CSP case. Op amps are Zero-Drift types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 28. Linear amplifier has a total of 28 pins. Please take in mind that op amp should be run at 12V. Instrumentation amplifier is a part of Instrumentation Amplifier. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~105°C. There are 1 circuits on op amps. On the output type, there are Differential different types of op amps. To conduct electronic part voltage gain higher than 0.0625.
