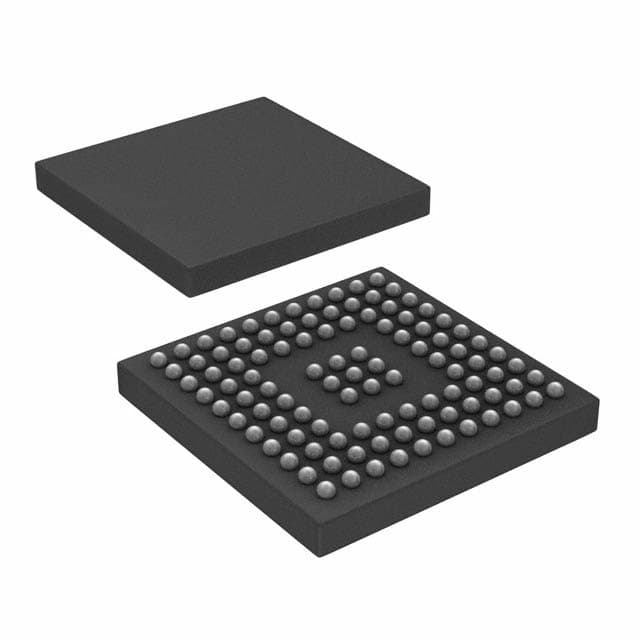

ADI AD9992BBCZRL

Manufacturer No:

AD9992BBCZRL

Manufacturer:

ADI

Package:

105-LFBGA, CSPBGA

Description:

105-LFBGA, CSPBGA Tape & Reel (TR) Obsolete Sensor & Detector Interface ICs CCD Signal Processor, 12-Bit Surface Mount 3 (168 Hours) ROHS3 Compliant

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD9992BBCZRL information

ADI AD9992BBCZRL technical specifications, attributes, parameters and parts with similar specifications to ADI AD9992BBCZRL.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 6 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
105-LFBGA, CSPBGA

Number of Pins
105

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
105

ECCN Code
EAR99

Type
CCD Signal Processor, 12-Bit

Terminal Finish
Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
AD9992

Pin Count
105

Interface
Parallel, Serial

Operating Supply Current
27mA

Power Dissipation
316mW

Input Type
Logic

Resolution
1.5 B

Sampling Rate
40 Msps

Number of A/D Converters
1

Differential Nonlinearity
0.5 LSB

Length
8mm

Width
8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD9992BBCZRL.

Datasheets:

analogdevicesinc-ad9992bbczrl-datasheets-3925.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD9992BBCZRL Overview

The product is packaged with the materials of Tape & Reel (TR).In order to save space, 105-LFBGA, CSPBGA packages are used.This type of CCD Signal Processor, 12-Bit provides superior performance.Sensor and detector interface is mounted using the Surface Mount technique.To avoid unnecessary cooling processes, it is recommended that the operating temperature be kept at -25°C~85°C.The input type is Logic.In order to prevent signals from reflecting off the end of the transmission line, 105 terminations are used.Electronic parts related to this part can be found by using its base part number AD9992.A number of 1 functions have been configured.Electronic devices with 105-pins are used in this device.Pins on 105 components are designed to perform the specified functions.There is a mounting in the way of Surface Mount.By maintaining the operating supply current at 27mA, improved efficiency can be achieved.A failure will occur if the supply voltage exceeds 3.6V.
