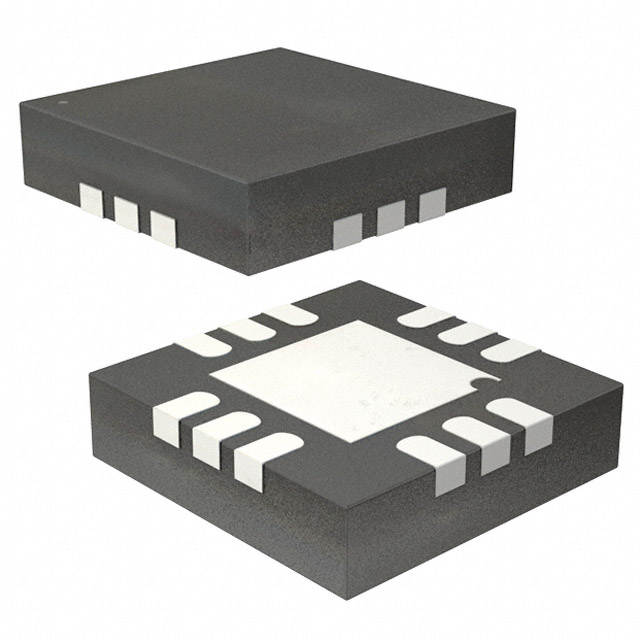

ADI AD8465WBCPZ-R7
Manufacturer No:
AD8465WBCPZ-R7
Manufacturer:
Package:
12-WFQFN Exposed Pad, CSP
Description:
Surface Mount Tape & Reel (TR) 50mA mA 1.6 ns ?s Linear Comparators 62dB dB 5?A pA 2mV mV
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AD8465WBCPZ-R7 information
ADI AD8465WBCPZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI AD8465WBCPZ-R7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Tin
- Mounting Type
- Surface Mount
- Package / Case
- 12-WFQFN Exposed Pad, CSP
- Surface Mount
- YES
- Number of Pins
- 12
- Operating Temperature
- -40°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- Automotive
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 12
- ECCN Code
- EAR99
- Type
- with Latch
- Subcategory
- Comparator
- Max Power Dissipation
- 42mW
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 2.5V
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- AD8465
- Pin Count
- 12
- Qualification Status
- Not Qualified
- Output Type
- Complementary, LVDS, Rail-to-Rail
- Number of Elements
- 1
- Power Supplies
- 3/5V
- Power Dissipation
- 42mW
- Output Current
- 50mA
- Propagation Delay
- 3 ns
- Quiescent Current
- 3mA
- Turn On Delay Time
- 1.6 ns
- Response Time
- 1.6 ns
- Common Mode Rejection Ratio
- 50 dB
- Voltage - Supply, Single/Dual (±)
- 2.5V~5.5V
- Output Current per Channel
- 50mA
- Input Offset Voltage (Vos)
- 2mV
- Voltage Gain
- 62dB
- Power Supply Rejection Ratio (PSRR)
- 60dB
- Supply Voltage Limit-Max
- 6V
- Max Input Current
- 5?A
- Input Bias Current
- 5?A
- Current - Quiescent (Max)
- 3mA
Download datasheets and manufacturer documentation for ADI AD8465WBCPZ-R7.
Datasheets:
PCN Assembly/Origin:
ConflictMineralStatement:
AD8465WBCPZ-R7 Overview
Electronic comparator is packaged in 12-WFQFN Exposed Pad, CSP for convenient transportation.This comparator is of the Complementary, LVDS, Rail-to-Rail output type.Ready for shipping in Tape & Reel (TR) package.You can find 12 terminals of the comparator.Other Comparator like the device play a important role in the industry.Supplied by 2.5V voltage, the comparator can accomplish the many demanding tasks.Speaking of types, this is a typical with Latch comparator.This is a 1 element comparator.The pinout of the component starts from 12 pins it has.Surface Mount universial mout for easy adapting.The operating temperature should be set to -40°C~125°C to avoid mal-function.The comparator has 12 pins.Try search AD8465 to get more pin-to-pin solutions for your special needs.This comparator presents a quiescent current of 3mA .3/5V power supplies are enough to run the device.The maximal current your can input into the device is 5?A .From the voltage formula, the voltage gain of the part is 62dB .The part is from Automotive comparator series.
AD8465WBCPZ-R7 Features
Complementary, LVDS, Rail-to-Rail output capability
with Latch IC
Employing 1 elements
Operates under -40°C~125°C
Quiescent Current: 3mA
Voltage Gain: 62dB
AD8465WBCPZ-R7 Applications
There are a lot of Analog Devices Inc.
AD8465WBCPZ-R7 linear comparators applications.
- Mobile Communications
- Notebooks and PDAs
- Battery-Powered Electronics
- General-Purpose Portable Devices
- General-Purpose, Low-Voltage Applications
- Self-diagnostics
- Lithium ion battery monitoring
- Battery management and protection
- Current and voltage sensing
- Analog front end
