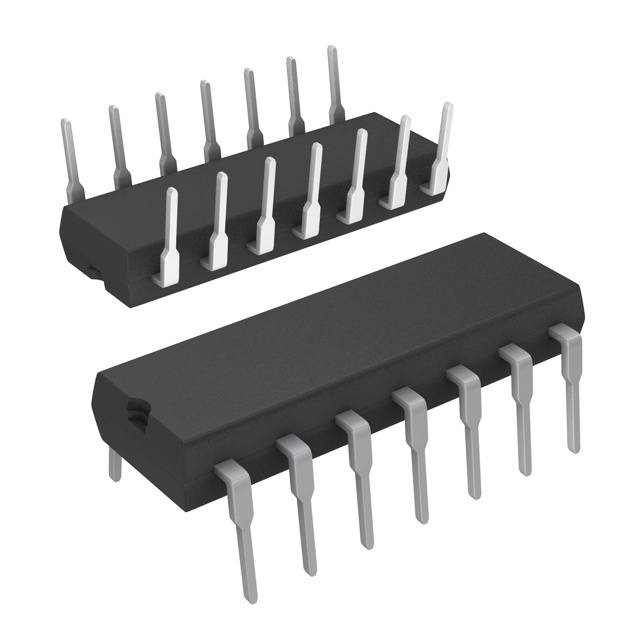

ADI AD842JNZ

Manufacturer No:

AD842JNZ

Manufacturer:

ADI

Package:

14-DIP (0.300, 7.62mm)

Description:

1 Channels 100mA per Channel 4.2?A 115 dB Instrumentational OP Amps ±5V~18V AD842 14 Pins 14-DIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD842JNZ information

ADI AD842JNZ technical specifications, attributes, parameters and parts with similar specifications to ADI AD842JNZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-DIP (0.300, 7.62mm)

Number of Pins
14

Operating Temperature
0°C~75°C

Packaging
Tube

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Subcategory
Operational Amplifier

Max Power Dissipation
1.3W

Technology
BIPOLAR

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Pin Count
14

Qualification Status
Not Qualified

Number of Channels
1

Operating Supply Current
13mA

Power Dissipation
1.3W

Output Current
100mA

Quiescent Current
13mA

Slew Rate
375V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
General Purpose

Common Mode Rejection Ratio
115 dB

Current - Input Bias
4.2?A

Voltage - Supply, Single/Dual (±)
±5V~18V

Output Current per Channel
100mA

Input Offset Voltage (Vos)
300?V

Bandwidth
80MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
80000 kHz

Voltage Gain
99.08dB

Power Supply Rejection Ratio (PSRR)
100dB

Low-Offset
NO

Frequency Compensation
YES AVCL>=2

Voltage - Input Offset
500?V

Download datasheets and manufacturer documentation for ADI AD842JNZ.

Datasheets:

analogdevicesinc-ad842jnz-datasheets-7279.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD842JNZ Overview

The linear amplifier is packaged in a 14-DIP (0.300, 7.62mm) case. This is a General Purpose type op amp. Linear amplifier is delivered in a Tube case. The number of terminations approaches 14. Buffer amplifier has a total of 14 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 14 pins. Regarding input offset voltage, op amp rates 300?V. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at 0°C~75°C. This op amp can operate from a supply current at 13mA. Voltage gain should remain at 99.08dB. The op amp ic has 1 channels on it. Buffer amplifier has a quiescent current of 13mA.

AD842JNZ Features

14 Pins
supply voltage of 15V
99.08dB voltage gain

AD842JNZ Applications

There are a lot of Analog Devices Inc.
AD842JNZ Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
