ADI AD841KH
ADI AD841KH

ADI AD841KH

Manufacturer No:

AD841KH

Manufacturer:

ADI

Package:

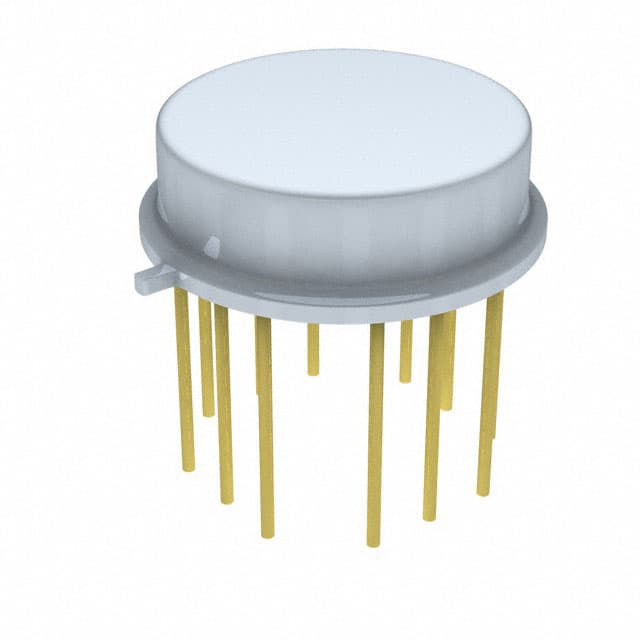

TO-8 Style, 12 Leads

Description:

50mA per Channel 3.5?A 103 dB Instrumentational OP Amps 6?A ±5V~18V AD841 12 Pins TO-8 Style, 12 Leads

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD841KH information

ADI AD841KH technical specifications, attributes, parameters and parts with similar specifications to ADI AD841KH.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-8 Style, 12 Leads
  • Number of Pins
  • 12
  • Operating Temperature
  • 0°C~75°C
  • Packaging
  • Bulk
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 12
  • ECCN Code
  • EAR99
  • Terminal Finish
  • GOLD
  • Subcategory
  • Operational Amplifier
  • Technology
  • BIPOLAR
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • WIRE
  • Number of Functions
  • 1
  • Supply Voltage
  • 15V
  • Terminal Pitch
  • 2.54mm
  • Base Part Number
  • AD841
  • Pin Count
  • 12
  • Number of Elements
  • 1
  • Number of Circuits
  • 1
  • Power Dissipation
  • 1.4W
  • Slew Rate
  • 300V/?s
  • Architecture
  • VOLTAGE-FEEDBACK
  • Amplifier Type
  • General Purpose
  • Common Mode Rejection Ratio
  • 103 dB
  • Current - Input Bias
  • 3.5?A
  • Voltage - Supply, Single/Dual (±)
  • ±5V~18V
  • Output Current per Channel
  • 50mA
  • Input Offset Voltage (Vos)
  • 500?V
  • Gain Bandwidth Product
  • 40MHz
  • Neg Supply Voltage-Nom (Vsup)
  • -15V
  • Unity Gain BW-Nom
  • 40000 kHz
  • Voltage Gain
  • 93.06dB
  • Average Bias Current-Max (IIB)
  • 6?A
  • Power Supply Rejection Ratio (PSRR)
  • 90dB
  • Low-Offset
  • NO
  • Frequency Compensation
  • YES
  • Bias Current-Max (IIB) @25C
  • 5?A
  • Dual Supply Voltage
  • 15V
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI AD841KH.

Datasheets:

ConflictMineralStatement:

AD841KH Overview


A TO-8 Style, 12 Leads case is used to package the op amp. General Purpose-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Bulk case. It is estimated that there will be 12 terminations in the next few months. There are a total of 12 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 15V volts. It should be noted that this op amp is a type of Operational Amplifier device. There are 12 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 500?V. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about 0°C~75°C . An 11mA volt supply current is needed for this linear amplifier to operate. Voltage gain should remain at 93.06dB. On this instrumentation amplifier, there are 1 circuits that are connected together. The buffer op amp is rated for an operating voltage of 1 when it comes to the power supply.
