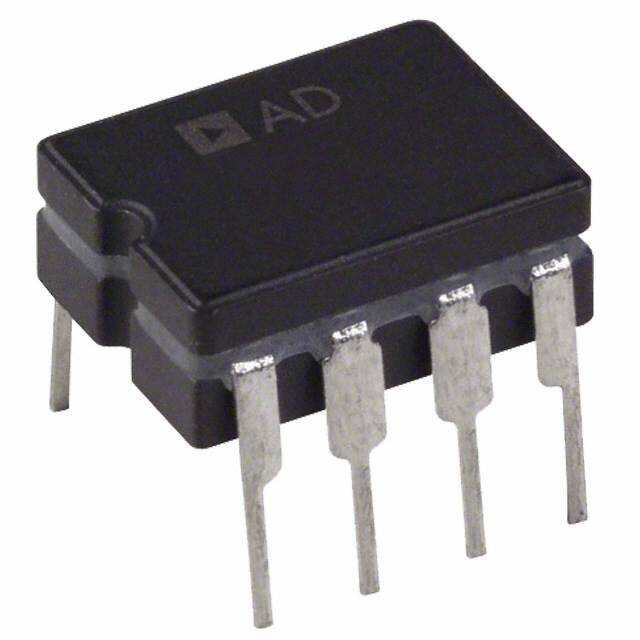

ADI AD827SQ/883B

Manufacturer No:

AD827SQ/883B

Manufacturer:

ADI

Package:

Description:

95 dB Instrumentational OP Amps 9.5μA AD827 8 Pins Q

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD827SQ/883B information

ADI AD827SQ/883B technical specifications, attributes, parameters and parts with similar specifications to ADI AD827SQ/883B.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Package / Case
Q

Surface Mount
NO

Number of Pins
8

Packaging
Tube

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Subcategory
Operational Amplifier

Max Power Dissipation
1.3W

Terminal Position
DUAL

Terminal Form
THROUGH-HOLE

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Number of Functions
2

Supply Voltage
15V

Reach Compliance Code
not_compliant

Base Part Number
AD827

Pin Count
8

Number of Elements
2

Power Supplies
+-5/+-15V

Temperature Grade
MILITARY

Max Supply Voltage
36V

Min Supply Voltage
9V

Operating Supply Current
13.5mA

Power Dissipation
1.3W

Quiescent Current
5.25mA

Slew Rate
300 V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
95 dB

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
30MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
50000 kHz

Voltage Gain
70.88dB

Average Bias Current-Max (IIB)
9.5μA

Power Supply Rejection Ratio (PSRR)
72dB

Low-Offset
NO

Frequency Compensation
YES

Download datasheets and manufacturer documentation for ADI AD827SQ/883B.

Datasheets:

analogdevicesinc-ad827jnz-datasheets-1162.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD827SQ/883B Overview

Packaged in a Q case, the buffer op amp is ready to use. An op amp ic of the OPERATIONAL AMPLIFIER type. The op amp is delivered to you in a Tube case. There is a growing number of terminations approaching the number of 8. The pins on this board total to 8 in total. I would like to remind you that this buffer op amp should be powered by an 15V battery. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. A total of 8 pins are present on the instrumentation amplifier. There is an input offset voltage of 2mV for this buffer op amp. As long as the supply current of the chip does not exceed 13.5mA, this op amp ic can operate. 70.88dB should remain the voltage gain. For the buffer op amp to operate properly, it must be above the temperature of -55°C degrees Celsius. No temperature greater than 125°C should be used. The linear amplifier consists of 2 different elements in total. In terms of the supply voltage, this electrical part is capable of operating at low voltage levels of under 36V. A high supply voltage of more than 9V is recommended for the instrumentation amplifier's supply voltage. As a rule of thumb, you should conduct this electronic part under a dual voltage supply of 18V volts. Currently, linear amplifier is operating with a quiescent current of 5.25mA.

AD827SQ/883B Features

8 Pins
supply voltage of 15V
70.88dB voltage gain

AD827SQ/883B Applications

There are a lot of Analog Devices Inc.
AD827SQ/883B Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
