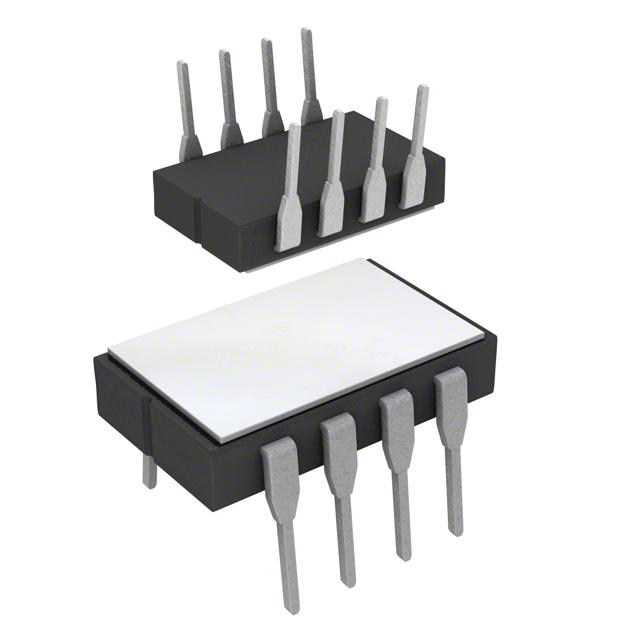

ADI AD8229HDZ

Manufacturer No:

AD8229HDZ

Manufacturer:

ADI

Package:

8-CDIP (0.300, 7.62mm)

Description:

1 Channels 35mA per Channel 70nA 86 dB Instrumentational OP Amps 0.07μA ±4V~17V AD8229 8 Pins 8-CDIP (0.300, 7.62mm)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD8229HDZ information

ADI AD8229HDZ technical specifications, attributes, parameters and parts with similar specifications to ADI AD8229HDZ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
10 Weeks

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
8-CDIP (0.300, 7.62mm)

Number of Pins
8

Operating Temperature
-40°C~210°C

Packaging
Tube

JESD-609 Code
e4

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
AD8229

Pin Count
8

Qualification Status
Not Qualified

Operating Supply Current
6.7mA

Max Supply Current
12mA

Slew Rate
22V/μs

Amplifier Type
Instrumentation

Common Mode Rejection Ratio
86 dB

Current - Input Bias
70nA

Voltage - Supply, Single/Dual (±)
±4V~17V

Output Current per Channel
35mA

Input Offset Voltage (Vos)
100μV

Bandwidth
15MHz

Gain Bandwidth Product
15MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Voltage Gain
60dB

Average Bias Current-Max (IIB)
0.07μA

-3db Bandwidth
15MHz

Input Offset Current-Max (IIO)
0.035μA

Voltage Gain-Nom
10

Height
2.667mm

Length
13.41mm

Width
7.5692mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD8229HDZ.

Datasheets:

analogdevicesinc-ad8229hrz-datasheets-2723.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD8229HDZ Overview

There is a 8-CDIP (0.300, 7.62mm) case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Instrumentation-types. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 8. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 100μV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of -40°C~210°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 6.7mA . There should be no change in the voltage gain. Op amp ic has 1 channels.

AD8229HDZ Features

8 Pins
supply voltage of 15V
60dB voltage gain

AD8229HDZ Applications

There are a lot of Analog Devices Inc.
AD8229HDZ Instrumentational OP Amps applications.
