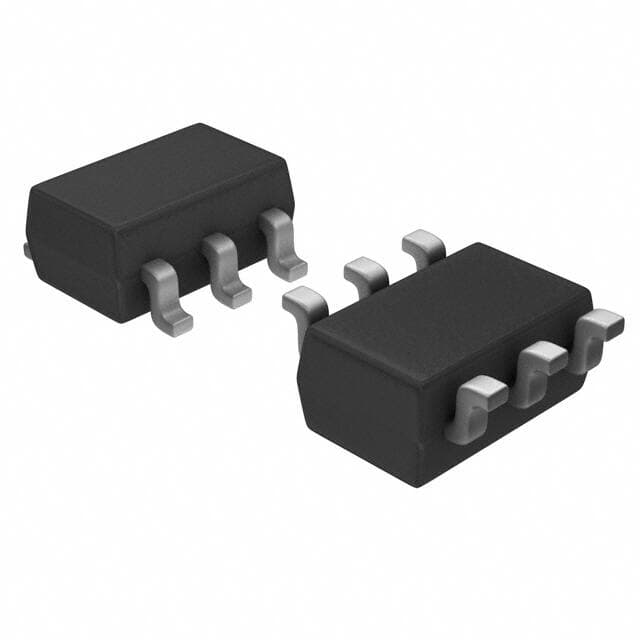

ADI AD7468BRTZ-REEL
Manufacturer No:
AD7468BRTZ-REEL
Manufacturer:
Package:
SOT-23-6
Description:
8 Bit 0.95mm Gold ADC AD7468 1.8V SOT-23-6
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AD7468BRTZ-REEL information
ADI AD7468BRTZ-REEL technical specifications, attributes, parameters and parts with similar specifications to ADI AD7468BRTZ-REEL.
- Type
- Parameter
- Contact Plating
- Gold
- Mounting Type
- Surface Mount
- Package / Case
- SOT-23-6
- Surface Mount
- YES
- Number of Pins
- 6
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Max Power Dissipation
- 570μW
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 1.8V
- Terminal Pitch
- 0.95mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- AD7468
- Pin Count
- 6
- Polarity
- Unipolar
- Number of Channels
- 1
- Max Supply Voltage
- 3.6V
- Min Supply Voltage
- 1.6V
- Power Dissipation
- 570μW
- Number of Bits
- 8
- Input Type
- Single Ended
- Architecture
- SAR
- Converter Type
- ADC, SUCCESSIVE APPROXIMATION
- Supply Type
- Single
- Reference Type
- Supply
- Data Interface
- SPI
- Resolution
- 1 B
- Sampling Rate
- 200 ksps
- Voltage - Supply, Analog
- 1.6V~3.6V
- Voltage - Supply, Digital
- 1.6V~3.6V
- Number of Analog In Channels
- 1
- Sampling Rate (Per Second)
- 200k
- Output Bit Code
- BINARY
- Integral Nonlinearity (INL)
- 0.2 LSB
- Sample and Hold / Track and Hold
- TRACK
- Input Capacitance
- 20pF
- Ratio - S/H:ADC
- 1:1
- Output Format
- SERIAL
Download datasheets and manufacturer documentation for ADI AD7468BRTZ-REEL.
PCN Obsolescence/ EOL:
ConflictMineralStatement:
Product Description:
The AD7468BRTZ-REEL is an 8-bit successive approximation analog-to-digital converter (ADC) from Analog Devices Inc. It is designed to provide high-resolution data acquisition in a compact surface-mount package. The ADC features a single-ended input, a track-and-hold sampling circuit, and a serial peripheral interface (SPI) for data transfer.
Features:
- High-resolution 8-bit conversion with a sampling rate of 200 ksps
- Single-ended input with a capacitance of 20pF
- Track-and-hold sampling circuit for accurate signal capture
- SPI interface for easy data transfer
- Compact SOT-23-6 package with a length of 2.9mm
- Operating temperature range of -40°C to 85°C
- Low power dissipation of 570μW
Applications:
- Primary applications: Medical devices, industrial control systems, and automotive systems that require high-resolution data acquisition
- Secondary applications: Consumer electronics, audio equipment, and other applications that require accurate signal conversion
Alternative Parts:
- AD7468 (base part number)
- Other 8-bit ADCs from Analog Devices Inc. with similar specifications
Embedded Modules:
- The AD7468BRTZ-REEL is used in various embedded systems, including:
- Medical devices for monitoring vital signs
- Industrial control systems for process monitoring
- Automotive systems for engine control and monitoring
FAQs:
Q: What is the maximum conversion time of the AD7468BRTZ-REEL? A: The maximum conversion time is 4.7μs.
Q: What is the input type of the ADC? A: The input type is single-ended.
Q: What is the power dissipation of the ADC? A: The power dissipation is 570μW.
Q: What is the operating temperature range of the ADC? A: The operating temperature range is -40°C to 85°C.
Q: What is the sampling rate of the ADC? A: The sampling rate is 200 ksps.
Q: Is the AD7468BRTZ-REEL RoHS compliant? A: Yes, the AD7468BRTZ-REEL is ROHS3 compliant.
Q: What is the package type of the ADC? A: The package type is SOT-23-6.
Q: Is the AD7468BRTZ-REEL radiation hardened? A: No, the AD7468BRTZ-REEL is not radiation hardened.
