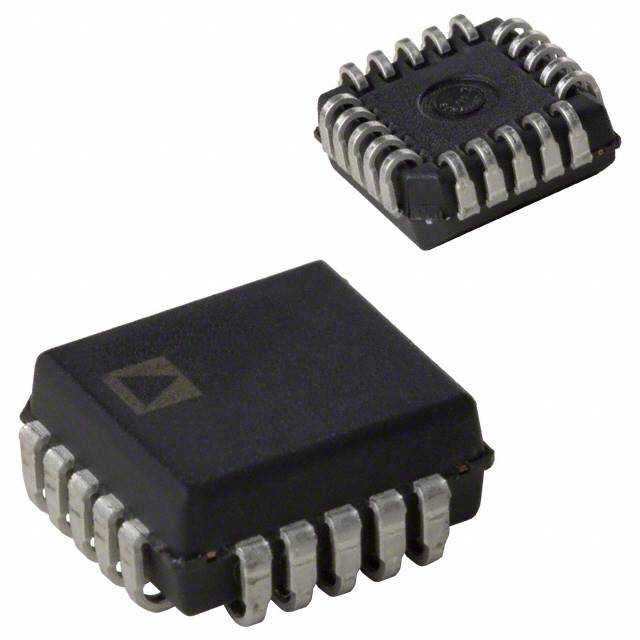

ADI AD652JPZ-REEL7
Manufacturer No:
AD652JPZ-REEL7
Manufacturer:
Package:
20-LCC (J-Lead)
Description:
1.27mm PMIC AD652 5MHz 15V 20-LCC (J-Lead)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AD652JPZ-REEL7 information
ADI AD652JPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI AD652JPZ-REEL7.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 weeks ago)
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 20-LCC (J-Lead)
- Number of Pins
- 20
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e3
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 20
- ECCN Code
- EAR99
- Type
- Voltage to Frequency
- Max Operating Temperature
- 70°C
- Min Operating Temperature
- 0°C
- HTS Code
- 8542.39.00.01
- Subcategory
- Analog Special Function Converters
- Terminal Position
- QUAD
- Terminal Form
- J BEND
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 15V
- Frequency
- 5MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- AD652
- Pin Count
- 20
- Qualification Status
- Not Qualified
- Temperature Grade
- COMMERCIAL
- Max Supply Voltage
- 36V
- Min Supply Voltage
- 12V
- Operating Supply Current
- 15mA
- Nominal Supply Current
- 15mA
- Accuracy
- 2 %
- Frequency (Max)
- 2MHz
- Max Input Voltage
- 10V
- Reference Voltage
- 5V
- Max Dual Supply Voltage
- 18V
- Linearity
- ±0.02%
- Min Dual Supply Voltage
- 6V
- Dual Supply Voltage
- 15V
- Negative Supply Voltage-Nom
- -15V
- Positive Input Voltage-Max
- 5V
- Full Scale
- ±25ppm/°C
- Total Error-Max
- 0.5%
- Length
- 8.9662mm
Download datasheets and manufacturer documentation for ADI AD652JPZ-REEL7.
Datasheets:
ConflictMineralStatement:
AD652JPZ-REEL7 Overview
The package 20-LCC (J-Lead) contains it. The electronic part is mounted in the direction of Surface Mount. The package is designed in the way of Tape & Reel (TR). Voltage to Frequency is the type of electrical device. A 20 termination involves terminating a transmission line with a device that matches its characteristic impedance. The device is equipped with a pin count of 20. The device is powered by a supply voltage of 15V. It is possible to identify related parts based on the base part number. A computer or other communication device may have 20 pins, which are pronged contacts. To ensure its reliability, it operates at a minimal operating temperature of 0°C. To ensure its reliability, it operates at a maximum operating temperature of 70°C. It is mounted in the direction of Surface Mount. Analog Special Function Converters includes this part. It is recommended that the supply voltage (Vsup) be greater than 12V. 36V is the maximum supply voltage (Vsup). The frequency of operation is 5MHz. 2MHz is the maximum frequency at which it operates. In order for 15mA to perform properly, it needs to be supplied with current. This electronic part has a maximum input type of 10V. The device is powered by a dual supply voltage of 15V. In this electrical device, 5V is the reference voltage.
AD652JPZ-REEL7 Features
20-LCC (J-Lead) package
20 terminations
20 pin count
20 pins
A dual supply voltage of 15V
AD652JPZ-REEL7 Applications
There are a lot of Analog Devices Inc.
AD652JPZ-REEL7 V/F & F/V Converters applications.
- Frequency-to-Voltage Conversion (Tachometer)
- Speedometers
- Breaker Point Dwell Meters
- Hand-Held Tachometers
- Speed Governors
- Cruise Control
- Automotive Door L ock Control
- Clutch Control
- Horn Control
- Touch or Sound Switches
