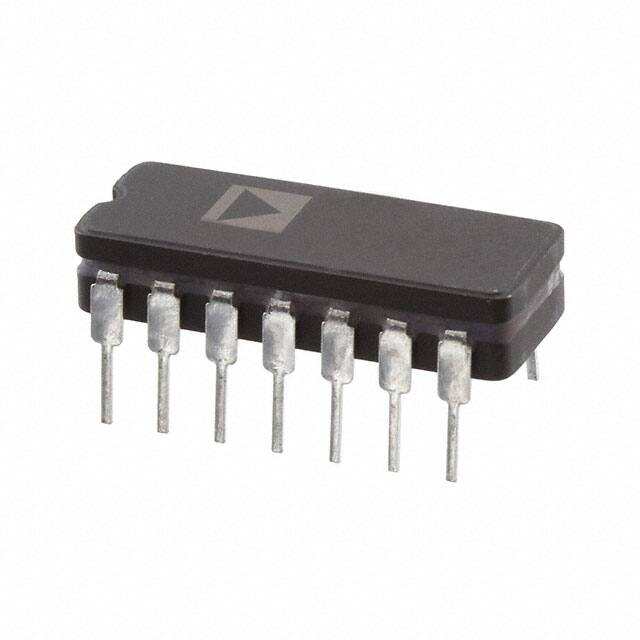

ADI AD594AQ

Manufacturer No:

AD594AQ

Manufacturer:

ADI

Package:

14-CDIP (0.300, 7.62mm)

Description:

14-CDIP (0.300, 7.62mm) Thermal Management 5V V 19.55mm mm Contains Lead

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD594AQ information

ADI AD594AQ technical specifications, attributes, parameters and parts with similar specifications to ADI AD594AQ.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time
10 Weeks

Contact Plating
Lead, Tin

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-CDIP (0.300, 7.62mm)

Number of Pins
14

Operating Temperature
-55°C~125°C

Packaging
Tube

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Through Hole

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

Subcategory
Instrumentation Amplifier

Technology
BIPOLAR

Voltage - Supply
5V~±15V

Terminal Position
DUAL

Supply Voltage
5V

Terminal Pitch
2.54mm

Base Part Number
AD594

Function
Thermocouple Amplifier

Output Type
Voltage

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Analog

Operating Supply Current
300?A

Nominal Supply Current
300?A

Output Current
5mA

Accuracy
±3°C(Max)

Topology
Ice Point Compensation, Overload Detection

Amplifier Type
INSTRUMENTATION AMPLIFIER

Input Offset Voltage (Vos)
16?V

Bandwidth
15 kHz

Gain Bandwidth Product
15 kHz

Supply Voltage Limit-Max
36V

Sensor Type
External

-3db Bandwidth
0.015MHz

Dual Supply Voltage
15V

Number of Amplifiers
1

Output Alarm
Yes

Output Fan
No

Height
3.76mm

Length
19.55mm

Width
6.6mm

Download datasheets and manufacturer documentation for ADI AD594AQ.

Datasheets:

analogdevicesinc-ad595cdz-datasheets-8030.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD594AQ Overview

Tube's materials are used for packaging.Thermal management uses the output type Voltage.Low package costs make it familiar to professionals in the electronic industry.Acting as Thermocouple Amplifier is possible.Device mounting is performed by Through Hole.External-type is incorporated in it.Maintaining a stable temperature of -55°C~125°C is essential to maintaining a reliable system.By providing 5V~±15V Supply Voltage, it will operate normally.Based on the Base Part Number AD594, you can identify the type of part in any package, regardless of the temperature or other variants.A 14-pin is included.Thermal management operates at a voltage of 5V.A Instrumentation Amplifier subcategory can be assigned to it.The device operates with a 5V voltage.In order to operate it, 300?A current is provided.Output terminal generates 5mA current.

AD594AQ Features

Available in the 14-CDIP (0.300, 7.62mm) package
Operating supply voltage of 5V
Operating supply current of 300?A

AD594AQ Applications

There are a lot of Analog Devices Inc.
AD594AQ applications of thermal management.
