ADI AD581UH/883B

Manufacturer No:

AD581UH/883B

Manufacturer:

ADI

Package:

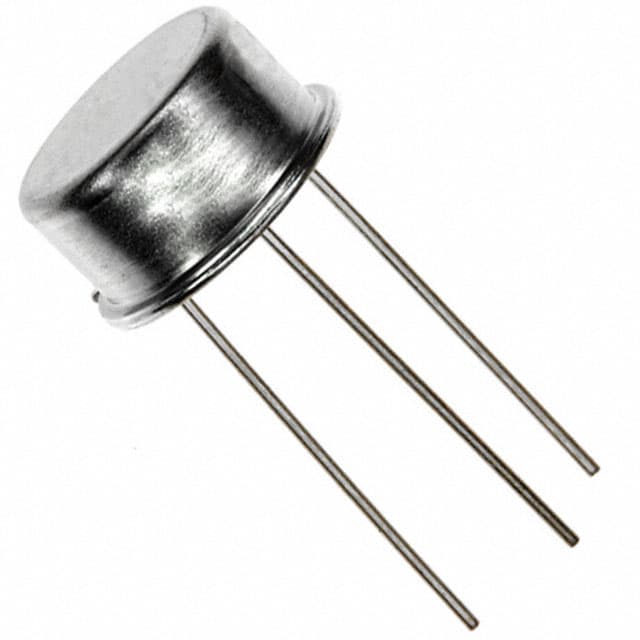

TO-205AA, TO-5-3 Metal Can

Description:

-55°C~125°C Fixed PMIC Military, MIL-STD-883 Series AD581 15V TO-205AA, TO-5-3 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD581UH/883B information

ADI AD581UH/883B technical specifications, attributes, parameters and parts with similar specifications to ADI AD581UH/883B.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-205AA, TO-5-3 Metal Can

Number of Pins
3

Operating Temperature
-55°C~125°C

Packaging
Box

Series
Military, MIL-STD-883

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
10ppm/°C

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
BOTTOM

Number of Functions
1

Supply Voltage
15V

Base Part Number
AD581

Pin Count
3

Output Voltage
10V

Output Type
Fixed

Max Output Current
10mA

Trim/Adjustable Output
YES

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
1mA

Voltage - Input
12V~30V

Nominal Supply Current
1mA

Max Output Voltage
10V

Max Input Voltage
40V

Reference Type
Series

Voltage Tolerance-Max
0.05%

Temp Coef of Voltage-Max
5 ppm/°C

Noise - 0.1Hz to 10Hz
40?Vp-p

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI AD581UH/883B.

Datasheets:

analogdevicesinc-ad581kh-datasheets-2043.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD581UH/883B Overview

This program utilizes the handy TO-205AA, TO-5-3 Metal Can package.This part serves as a voltage reference and is controlled by a Series signal.There is an external packaging of Box.With 3, different functions are terminated.Connected to the part is an analog integrated circuit (IC).An output voltage of 10V is determined based on test statistics.It is sufficient to output 1.Fixed forms are provided for user input.A part with 3 pins is included.Pins 3 are firmly seated in the part.Use of Through Hole can increase the complexity of the PCB design.-55°C~125°C is suitable for work within this range.Being a type Voltage References, the voltage reference circuit has many applications.There are other relevant parts if you search for "AD581".Through Hole is the right platform for the application.There is 10mA way the reference voltage can output more current than 10mA in this case.The maximum output voltage of the voltage reference ic amounts to 10V volts.As the input voltage of this voltage reference ic is 40V, users should confine the voltage accordingly.There must be a 15V supply voltage for it to function.An input voltage of 12V~30V is usually supported by the voltage reference circuit.1mA volts is the supply current for this voltage reference circuit.The gadget is from the Military, MIL-STD-883 line.It holds a maximum of 0.05% inaccuracies.

AD581UH/883B Features

THREE TERMINAL VOLTAGE REFERENCE Analog IC
Max Output Voltage: 40V

AD581UH/883B Applications

There are a lot of Analog Devices Inc.
AD581UH/883B Voltage Reference applications.

Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
and Digital-to-Analog Converters
High-Accuracy Reference Standard
