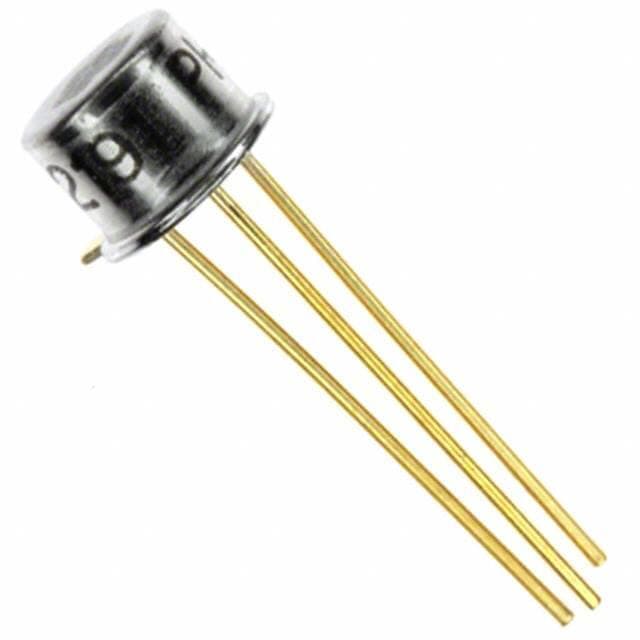

ADI AD580LH

Manufacturer No:

AD580LH

Manufacturer:

ADI

Package:

TO-206AC, TO-52-3 Metal Can

Description:

0°C~70°C TA Fixed PMIC AD580 1 Channel 15V TO-206AC, TO-52-3 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AD580LH information

ADI AD580LH technical specifications, attributes, parameters and parts with similar specifications to ADI AD580LH.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
TO-206AC, TO-52-3 Metal Can

Surface Mount
NO

Number of Pins
3

Operating Temperature
0°C~70°C TA

Packaging
Bulk

Tolerance
±0.4%

JESD-609 Code
e4

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
25ppm/°C

Terminal Finish
Gold (Au)

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Number of Functions
1

Supply Voltage
15V

Current Rating
1.5mA

Pin Count
3

Number of Outputs
1

Output Voltage
2.5V

Output Type
Fixed

Number of Channels
1

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Operating Supply Current
1.5mA

Voltage - Input
4.5V~30V

Nominal Supply Current
1.5mA

Current - Output
10mA

Quiescent Current
1.5mA

Max Output Voltage
2.5V

Min Input Voltage
4.5V

Max Input Voltage
40V

Reference Voltage
2.5V

Reference Type
Series

Temp Coef of Voltage-Max
25 ppm/°C

Noise - 0.1Hz to 10Hz
8?Vp-p

Height
3.81mm

Length
5.84mm

Width
5.84mm

REACH SVHC
No SVHC

Download datasheets and manufacturer documentation for ADI AD580LH.

Datasheets:

analogdevicesinc-ad580lh-datasheets-2582.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

AD580LH Overview

The reference voltage makes use of a handy TO-206AC, TO-52-3 Metal Can package.This program utilizes the handy Series package.The reference voltage is enclosed in the Bulk external packaging.3 terminations with various functions.±0.4% tolerance for precise voltage reference.THREE TERMINAL VOLTAGE REFERENCE analog IC is coupled with the reference voltage.It outputs 2.5V voltage according to the test statistics.It is sufficient to generate 1 outputs. It can handle Fixed output (s).The voltage reference ic includes 3 pins.3 pins are settled in the voltage reference ic.Through Hole is available for demanding PCB design.Qualified to work within 0°C~70°C TA.As a type of Voltage References, the voltage reference circuit is used in various applications.Other relevant parts can be found by searching "AD580".It is suitable for 10mA input applications.There are 1 channels for high-quality communication.As per the datasheet, the voltage reference ic can output 2.5V voltage at its maximum.Since the max input voltage of the part is 40V, users ought to confine the voltage correspondingly.It requires a 15V supply voltage.Commonly, the voltage reference ic can supply a 4.5V~30V voltage input.The voltage reference circuit uses 1.5mA when it is idle.It runs on 1.5mA supply current.Does the voltage reference ic contain Substances of Very High Concern (SVHC)? The answer is No SVHC.This voltage reference can output a voltage of 2.5V regardless of variations in external conditions.The record shows, it requires 4.5V voltage at least to get the voltage reference ic run.

AD580LH Features

±0.4% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Channel Number: 1
Max Output Voltage: 40V
Reference Voltage: 2.5V

AD580LH Applications

There are a lot of Analog Devices Inc.
AD580LH Voltage Reference applications.

Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
