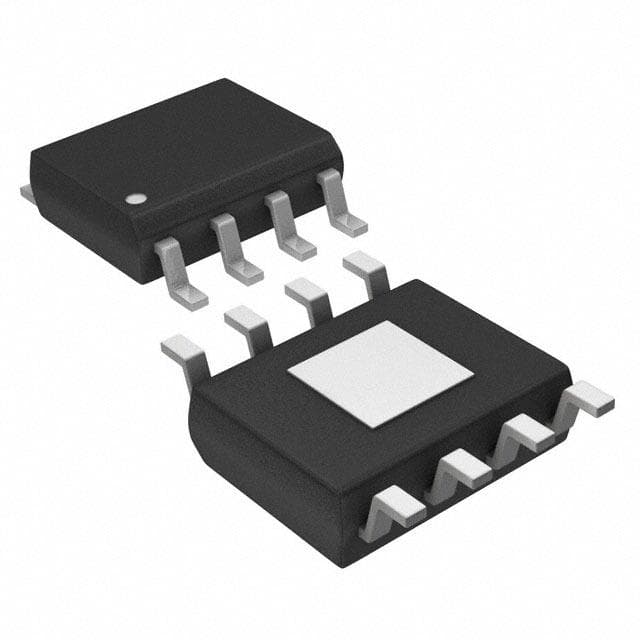

Active-Semi ACT2113YH-T

Manufacturer No:

ACT2113YH-T

Manufacturer:

Active-Semi

Package:

SOP

Description:

DC DC Voltage Regulator 1 Outputs 510kHz Tape & Reel (TR) 3A SOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACT2113YH-T information

Active-Semi ACT2113YH-T technical specifications, attributes, parameters and parts with similar specifications to Active-Semi ACT2113YH-T.

Type
Parameter

Mount
Surface Mount

Package / Case
SOP

Weight
850.995985mg

Packaging
Tape & Reel (TR)

Published
2012

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Number of Outputs
1

Output Type
Adjustable

Min Supply Voltage
4.5V

Operating Supply Current
750?A

Output Configuration
Positive

Current - Output
3A

Max Output Voltage
12V

Voltage - Output
12V

Min Input Voltage
4.5V

Frequency - Switching
510kHz

Max Input Voltage
18V

Synchronous Rectifier
Yes

Min Output Voltage
923mV

Height
1.75mm

Length
5.1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Active-Semi ACT2113YH-T.

Datasheets:

activesemi-act2113yht-datasheets-1672.pdf

ACT2113YH-T Overview

Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. There is a SOP package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. In this voltage regulator 12v, the switching frequency is 510kHz. DC DC switching regulator's maximum design flexibility comes from its output current of 3A. This voltage regulator 12v should be configured with an output voltage that is at least 923mV. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 12V. The dc to dc voltage regulator's minimum supply voltage of 4.5V volts ensures reliable performance. Stable operation of switching regulator is possible because of the high operating temperature 85°C limit. The voltage regulator 12v must operate at a minimum operating temperature of -40°C in order to remain reliable. The voltage regulator 12v supports a dc to dc voltage regulator's minimum input voltage of 4.5V for its input. 18V input voltage can be sustained by this voltage regulator 12v. A 750?A supply current is required to power this voltage regulator. 12V is the maximum voltage that DC DC switching regulator can output.
