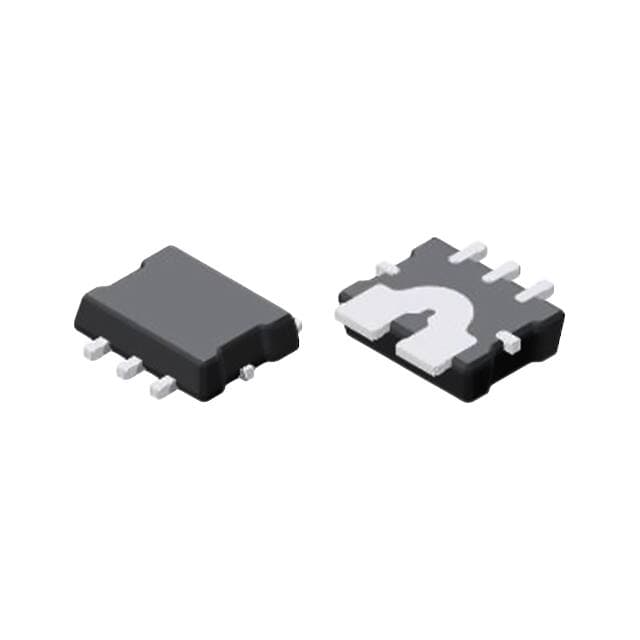

ALLEGRO ACS780LLRTR-050B-T

Manufacturer No:

ACS780LLRTR-050B-T

Manufacturer:

ALLEGRO

Package:

7-PowerSMD Module

Description:

Automotive, AEC-Q100 Series Hall Effect, Differential Sensor 1-Channel Bidirectional -40°C~150°C 4.5V~5.5V DC~120kHz 50A Accuracy-±1.5% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACS780LLRTR-050B-T information

ALLEGRO ACS780LLRTR-050B-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO ACS780LLRTR-050B-T.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
7-PowerSMD Module

Surface Mount
YES

Operating Temperature
-40°C~150°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Published
2016

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
7

Technology
BICMOS

Voltage - Supply
4.5V~5.5V

Terminal Position
QUAD

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
DC~120kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

JESD-30 Code
R-PQFP-F7

Current - Supply (Max)
15mA

Supply Voltage-Max (Vsup)
5.5V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Accuracy
±1.5%

Response Time
3.6?s

Sensor Type
Hall Effect, Differential

Linearity
±1%

Sensitivity
40mV/A

For Measuring
AC/DC

Current - Sensing
50A

Length
6.4mm

Width
4.8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO ACS780LLRTR-050B-T.

Datasheets:

allegromicrosystems-acs780llrtr050bt-datasheets-0676.pdf

allegromicrosystemsllc-acs780llrtr050bt-datasheets-7482.pdf

ACS780LLRTR-050B-T Overview

Safety measures are taken to protect the current sensors by putting them in 7-PowerSMD Module packages. For protection, these sensors are packaged in the Tape & Reel (TR). Current sensors should only output 15mA current. Currently, the current sensors are terminated with 7. As they work, these current sensors can supply voltages of 5V. Current sensors must supply 4.5V as their minimum voltage. Nevertheless, current sensors should not supply voltages higher than 5.5V.

ACS780LLRTR-050B-T Features

Moisture Sensitivity Level: 3 (168 Hours)
Operating Temperature: -40°C~150°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Differential
Supply Voltage: 4.5V~5.5V
Frequency: DC~120kHz
Sensing Current: 50A
7-PowerSMD Module Package

ACS780LLRTR-050B-T Applications

There are a lot of Allegro MicroSystems
ACS780LLRTR-050B-T Current Sensors applications.

Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
