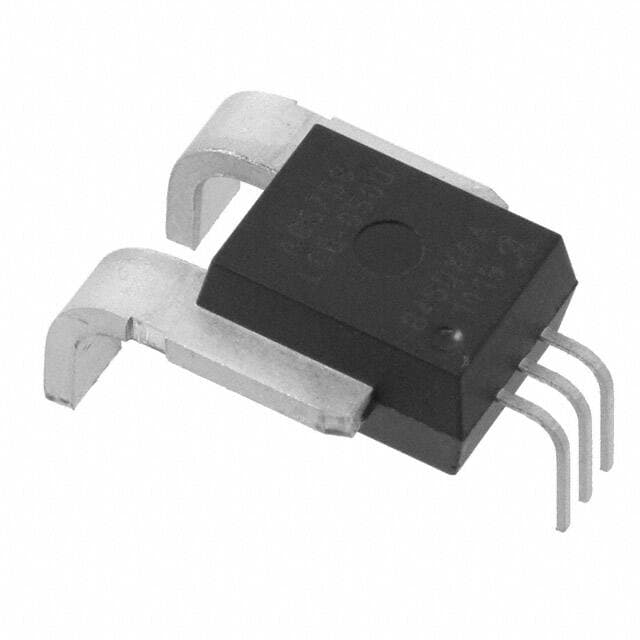

ALLEGRO ACS758ECB-200U-PFF-T

Manufacturer No:

ACS758ECB-200U-PFF-T

Manufacturer:

ALLEGRO

Package:

5-CB Formed Leads, PFF

Description:

Automotive, AEC-Q100 Series Hall Effect, Open Loop Sensor 1-Channel Unidirectional -40°C~85°C 3V~5.5V DC~120kHz 200A Accuracy-±1.2% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACS758ECB-200U-PFF-T information

ALLEGRO ACS758ECB-200U-PFF-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO ACS758ECB-200U-PFF-T.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount, Through Hole

Mounting Type
Through Hole

Package / Case
5-CB Formed Leads, PFF

Number of Pins
5

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
Automotive, AEC-Q100

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Terminal Finish
Matte Tin (Sn)

Technology
BICMOS

Voltage - Supply
3V~5.5V

Terminal Position
UNSPECIFIED

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Frequency
DC~120kHz

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
5

Operating Supply Voltage
5V

Supply Voltage-Min (Vsup)
3V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Unidirectional

Output Current
1mA

Max Supply Current
13.5mA

Quiescent Current
10mA

Accuracy
±1.2%

Response Time
4?s

Bandwidth
120 kHz

Sensor Type
Hall Effect, Open Loop

Linearity
±1%

For Measuring
DC

Current - Sensing
200A

Sensitivity (mV/A)
20 mV/A

Height
7mm

Length
10mm

Width
13mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO ACS758ECB-200U-PFF-T.

Datasheets:

allegromicrosystems-acs758lcb100upfft-datasheets-1375.pdf

PCN Part Status Change:

allegromicrosystems-acs709llftr35bbt-pcnpartstatuschange-0215.pdf

ACS758ECB-200U-PFF-T Overview

Safety measures are taken to protect the current sensors by putting them in 5-CB Formed Leads, PFF packages. For protection, these sensors are packaged in the Tube. A current sensor's supply current should not exceed 13.5mA. Currently, the current sensors are terminated with 5. Currently, this sensor has 5 pins. When operating, the sensors could supply 5V. As they work, these current sensors can supply voltages of 5V. Current sensors must supply 3V as their minimum voltage. In this electronic part, there are 5 pins. Normally, current sensors should display a value of 1mA.

ACS758ECB-200U-PFF-T Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 3V~5.5V
Frequency: DC~120kHz
Sensing Current: 200A
5-CB Formed Leads, PFF Package

ACS758ECB-200U-PFF-T Applications

There are a lot of Allegro MicroSystems
ACS758ECB-200U-PFF-T Current Sensors applications.

Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
