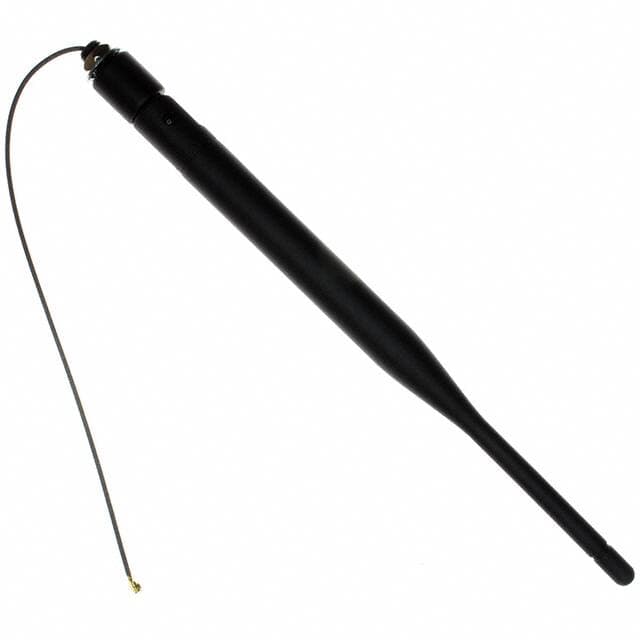

Quatech-Division of B&B Electronics ACH2-AT-DP004-G

Manufacturer No:

ACH2-AT-DP004-G

Manufacturer:

Quatech-Division of B&B Electronics

Package:

Description:

1 Bands Whip, Tilt UHF 2GHz~3GHz Panel Mount U.FL (UMCC), IPEX MHF1 2.4GHz 5dBi Bulk 7.618 193.50mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACH2-AT-DP004-G information

Quatech-Division of B&B Electronics ACH2-AT-DP004-G technical specifications, attributes, parameters and parts with similar specifications to Quatech-Division of B&B Electronics ACH2-AT-DP004-G.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Panel Mount

Packaging
Bulk

Series
Airborne?

Feature
Cable - 127mm

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
U.FL (UMCC), IPEX MHF1

Gain
5dBi

Frequency Range
2.4GHz~2.5GHz

Antenna Type
Whip, Tilt

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.4GHz

Height (Max)
7.618 193.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Quatech-Division of B&B Electronics ACH2-AT-DP004-G.

Datasheets:

quatech-ach2atdp004g-datasheets-1878.pdf

ACH2-AT-DP004-G Overview

It is suitable for general RF Antennas when it is set to Panel Mount.There is a Antenna RF in the Airborne? series.Bulk is the solid enclosure in which RF modulator is packaged.

ACH2-AT-DP004-G Features

With Panel Mount
Airborne? series

ACH2-AT-DP004-G Applications

There are a lot of Quatech-Division of B&B Electronics
ACH2-AT-DP004-G RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
