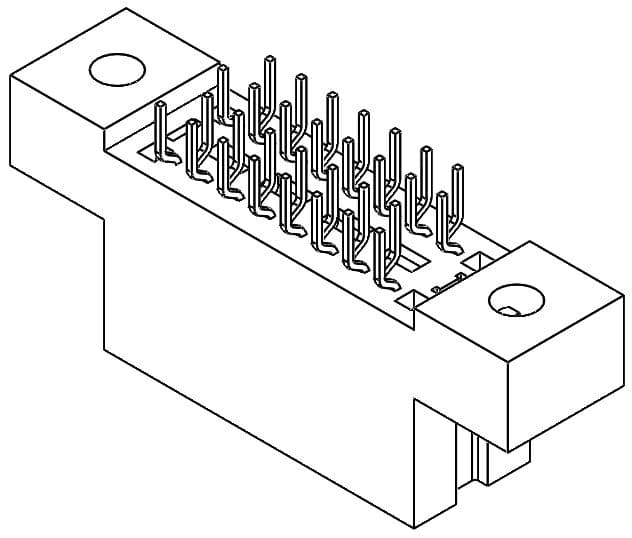

Sullins Connector Solutions ABB05DYHD
Sullins Connector Solutions ABB05DYHD

Sullins Connector Solutions ABB05DYHD

Manufacturer No:

ABB05DYHD

Manufacturer:

Sullins Connector Solutions

Package:

Description:

Female Black 0.050 1.27mm Beryllium Copper 2 Rows Tube Solder, Staggered Gold 10 Positions Polyphenylene Sulfide (PPS)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ABB05DYHD information

Sullins Connector Solutions ABB05DYHD technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions ABB05DYHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 3 Weeks
  • Contact Material
  • Beryllium Copper
  • Mounting Type
  • Through Hole
  • Material - Insulation
  • Polyphenylene Sulfide (PPS)
  • Mounting Option 2
  • LOCKING
  • Operating Temperature
  • -65°C~150°C
  • Packaging
  • Tube
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder, Staggered
  • Connector Type
  • CARD EDGE CONNECTOR
  • Number of Positions
  • 10
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Subcategory
  • Headers and Edge Type Connectors
  • Contact Type
  • Cantilever
  • Pitch
  • 0.050 1.27mm
  • Total Number of Contacts
  • 10
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Body Length or Diameter
  • 1.09 inch
  • Number Of PCB Rows
  • 4
  • Body Breadth
  • 0.37 inch
  • Body Depth
  • 0.61 inch
  • Rated Current (Signal)
  • 1A
  • Contact Resistance
  • 30mOhm
  • Card Type
  • Non Specified - Dual Edge
  • Read Out
  • Dual
  • Number of Positions/Bay/Row
  • 5
  • Flange Feature
  • Flush Mount, Top Opening, Unthreaded, 0.125 (3.18mm) Dia
  • Insertion Force-Max
  • 1.668 N
  • Withdrawl Force-Min
  • .139 N
  • Contact Finish Thickness
  • 10.0μin 0.25μm
  • Card Thickness
  • 0.062 1.57mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Sullins Connector Solutions ABB05DYHD.

Datasheets:

Environmental Information:

ABB05DYHD Overview


We packaged the material in accordance with Tube's specifications.The mount type Through Hole is recommended.The device is connected with the connector socket CARD EDGE CONNECTOR.

ABB05DYHD Features




ABB05DYHD Applications


There are a lot of Sullins Connector Solutions
ABB05DYHD Edgeboard Connectors applications.


  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
  • Data Acquisition Systems
