NKK Switches AB15AV-FA
NKK Switches AB15AV-FA

NKK Switches AB15AV-FA

Manufacturer No:

AB15AV-FA

Manufacturer:

NKK Switches

Package:

Description:

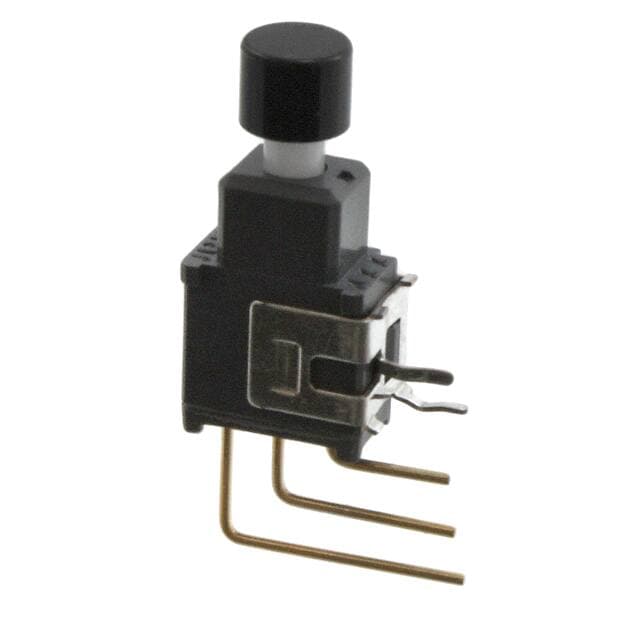

Process Sealed Subminiature Pushbutton; Poles: SPDT; Circuits: On-Mom; Current Rating: 0.4VA (AC/DC); Rating (AC): 28V; Rating (DC): 28V; Actuator Type: Round, Button; Actuator Cap Color: Black; Mounting Type: Through Hole, Right Angle, Vertical; Termination Style: PC Pin; Features: Sealed - Fully; Rating: 0.4; Illumination: Non-Illuminated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AB15AV-FA information

NKK Switches AB15AV-FA technical specifications, attributes, parameters and parts with similar specifications to NKK Switches AB15AV-FA.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • NKK SWITCHES CO LTD
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.50.90.31
  • Samacsys Manufacturer
  • NKK Switches
  • Actuator Color
  • BLACK
  • Actuator Length
  • 0.248 inch
  • Actuator Material
  • POLYCARBONATE
  • Actuator Travel
  • 1.0922 mm
  • Actuator Type
  • LONG PLUNGER
  • Additional Feature
  • MOUNTING BRACKET
  • Body Breadth
  • 5.08 mm
  • Body Color
  • BLACK
  • Body Height
  • 10.2 mm
  • Body Length or Diameter
  • 13.88 mm
  • Bushing Length
  • 0.177 inch
  • Bushing Type
  • RECTANGULAR
  • Center Contact Material
  • PHOSPHOR BRONZE
  • Center Contact Plating
  • GOLD OVER SILVER
  • Contact (AC) Max Rating R Load
  • 0.014A@28VAC
  • Contact Current(AC)-Max
  • 0.014 A
  • Contact (DC) Max Power Rating R Load
  • 0.4VA@28VDC
  • Contact (DC) Max Rating R Load
  • 0.014A@28VDC
  • Contact Function
  • ON-(ON)
  • Contact Resistance
  • 0.05 mΩ
  • Contact Voltage(AC)-Max
  • 28 V
  • Contact Voltage(DC)-Max
  • 28 V
  • Dielectric Withstand Volts
  • 500VAC V
  • Electrical Life
  • 50000 Cycle(s)
  • End Contact Material
  • BRASS
  • End Contact Plating
  • GOLD OVER NICKEL
  • Illumination
  • NON-ILLUMINATED
  • Insulation Resistance
  • 500000000 Ω
  • Insulator Material
  • GLASS FILLED POLYAMIDE
  • JESD-609 Code
  • e4
  • Mounting Feature
  • THROUGH HOLE-RIGHT ANGLE
  • Operating Force-Max
  • 2.55 N
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -30 °C
  • PCB Hole Count
  • 5
  • Sealing
  • EPOXY TERMINAL SEALED
  • Solderability
  • WAVE
  • Surface Mount
  • NO
  • Switch Action
  • MOMENTARY

Download datasheets and manufacturer documentation for NKK Switches AB15AV-FA.

Datasheets:

Environmental Information:

ConflictMineralStatement:
