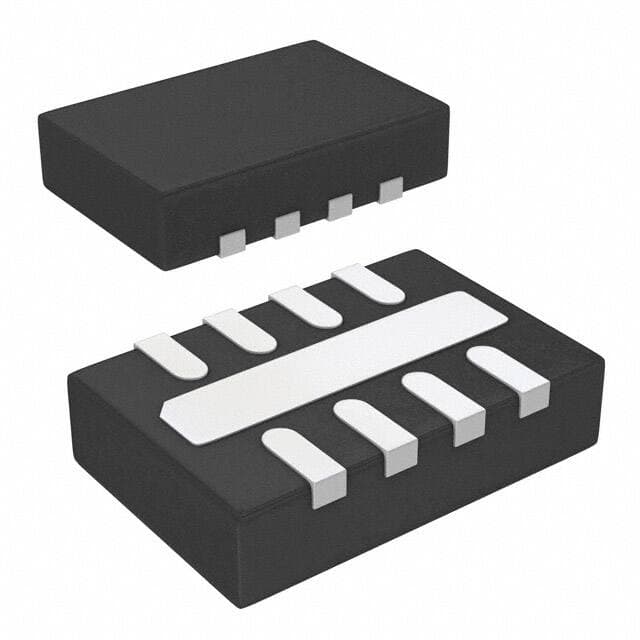

SKYWORKS AAT4282BIPS-3-T1

Manufacturer No:

AAT4282BIPS-3-T1

Manufacturer:

SKYWORKS

Package:

Description:

0.45mm PMIC 8 Pin 5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT4282BIPS-3-T1 information

SKYWORKS AAT4282BIPS-3-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT4282BIPS-3-T1.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Number of Pins
8

Packaging
Tape & Reel (TR)

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Resistance
230mOhm

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Max Power Dissipation
1.35W

Terminal Position
DUAL

Number of Functions
2

Supply Voltage
5V

Terminal Pitch
0.45mm

Number of Outputs
2

Max Output Current
3A

Operating Supply Voltage
6.5V

Temperature Grade
INDUSTRIAL

Interface
On/Off

Output Configuration
High Side

Power Dissipation
1.35W

Output Current
3A

Turn On Delay Time
1.5 ms

Turn-Off Delay Time
10 ?s

Turn On Time
40 ?s

Built-in Protections
TRANSIENT

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS AAT4282BIPS-3-T1.

Datasheets:

skyworkssolutionsinc-aat4282bips3t1c-datasheets-9566.pdf

PCN Obsolescence/ EOL:

skyworkssolutionsinc-sky8129414001-pcnobsolescenceeol-6745.pdf

AAT4282BIPS-3-T1 Overview

Tape & Reel (TR) is the way it's packaged.The LED driver has 2 outputs.It has a total of 8 terminations.For operation, we use the 8 pins.It has 2 functions.Maximum output current falls to 3A when operation criteria are met.Supply voltages of 5V allow for high efficiency.It is mounted in the way of Surface Mount.230mOhm is the resistance of the lighting driver.When this case is used, the output current is set to 3A.In order to optimize the efficiency of the supply voltage, it should be set to 6.5V.Keeping the operating temperature at 85°C°C ensures stable operation.Reliability is assured with a minimum working temperature of -40°C degrees Celsius.For its operation, a current of 1?A is required.

AAT4282BIPS-3-T1 Features

Supplied from 5V
Resistance of 230mOhm

AAT4282BIPS-3-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT4282BIPS-3-T1 Power Switches ICs applications.

USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
