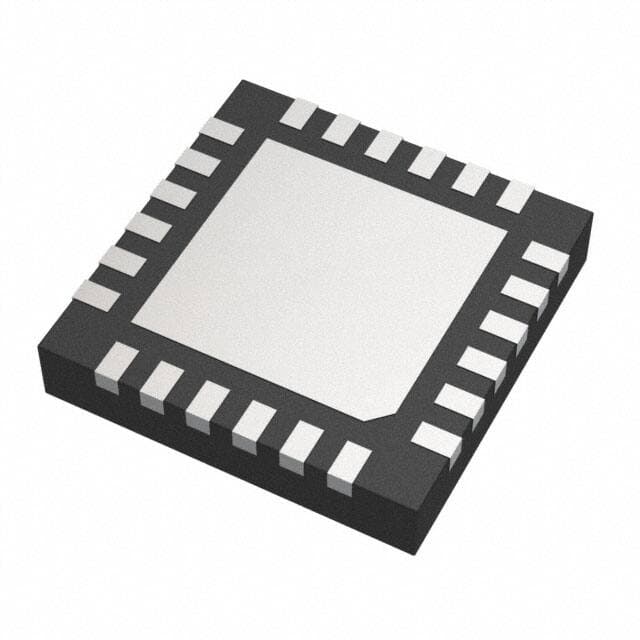

SKYWORKS AAT2822IBK-1-T1

Manufacturer No:

AAT2822IBK-1-T1

Manufacturer:

SKYWORKS

Package:

24-WFQFN Exposed Pad

Description:

0.5mm PMIC ChargePump? Series 1.3MHz 5V 24-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT2822IBK-1-T1 information

SKYWORKS AAT2822IBK-1-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT2822IBK-1-T1.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
24-WFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
ChargePump?

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
DC DC Regulator

Applications
Automotive, Backlight

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Frequency
1.3MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-XQCC-N24

Number of Outputs
1

Voltage - Output
14.5V

Topology
Step-Up (Boost)

Internal Switch(s)
Yes

Dimming
PWM

Supply Voltage1-Nom
12V

Number of Segments
13

Voltage - Supply (Max)
5.5V

Voltage - Supply (Min)
2.5V

Multiplexed Display Capability
NO

Length
4mm

Height Seated (Max)
0.8mm

Width
4mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SKYWORKS AAT2822IBK-1-T1.

Datasheets:

skyworkssolutionsinc-aat2822ibk1t1-datasheets-7818.pdf

PCN Obsolescence/ EOL:

skyworkssolutionsinc-sky8129414001-pcnobsolescenceeol-6745.pdf

AAT2822IBK-1-T1 Overview

Board space is saved by its 24-WFQFN Exposed Pad package.This LED driver has 1 outputs.Surface Mount is used for mounting.This emerges as a DC DC Regulator with high efficiency and reliability.The led light driver is capable of working normally at -40°C~85°C TA.There are considerable benefits for Automotive, Backlight.Based on the frequency of 1.3MHz, it operates.It operates with 24 terminations.Undetermined failures will occur if the voltage supply is less than 2.5V.It consists of 13 segments.The output voltage is 14.5V.The supply voltage is optimized to offer a maximum value of 5.5V.When operating with a 50mA output current, the LED driver delivers all the benefits.There are many applications for this LED driver belonging to the ChargePump? series.

AAT2822IBK-1-T1 Features

Available in the 24-WFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 1.3MHz
Supply voltage of 5V

AAT2822IBK-1-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT2822IBK-1-T1 LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
