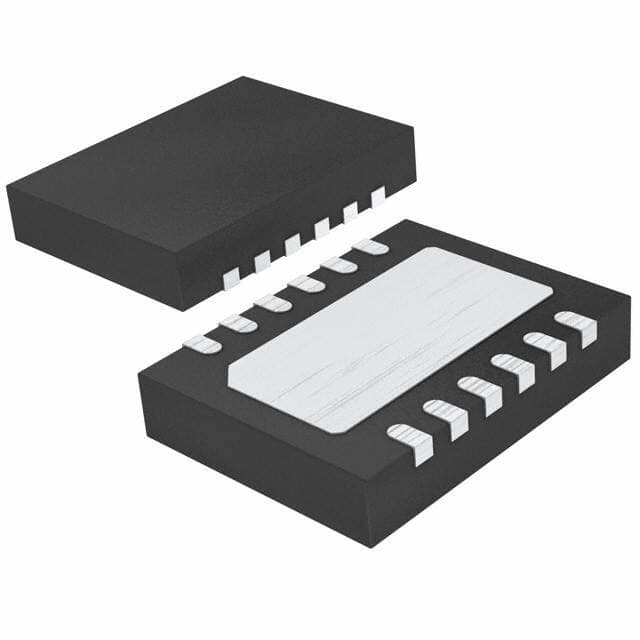

SKYWORKS AAT2500IWP-AW-T1

Manufacturer No:

AAT2500IWP-AW-T1

Manufacturer:

SKYWORKS

Package:

12-WFDFN Exposed Pad

Description:

PMIC TPMIC? Series 12 Pin 12-WFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT2500IWP-AW-T1 information

SKYWORKS AAT2500IWP-AW-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT2500IWP-AW-T1.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-WFDFN Exposed Pad

Number of Pins
12

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
TPMIC?

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Voltage - Supply
2.7V~5.5V

Number of Outputs
2

Voltage - Output 1
2.5V

Analog IC - Other Type
SWITCHING REGULATOR

Output Current
300mA

Voltage - Output 2
3.3V

Topology
Step-Down (Buck) Synchronous (1), Linear (LDO) (1)

Min Input Voltage
2.7V

Frequency - Switching
1MHz

Max Input Voltage
5.5V

Current - Output 1
400mA

Current - Output 2
300mA

w/Sequencer
No

Voltage/Current - Output 2
3.3V 300mA

Length
3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS AAT2500IWP-AW-T1.

Datasheets:

skyworkssolutionsinc-aat2500iwpawt1-datasheets-2789.pdf

skyworkssolutions-aat2500iwpawt1-datasheets-5235.pdf

AAT2500IWP-AW-T1 Overview

Transport is made easier with the 12-WFDFN Exposed Pad package.The Tape & Reel (TR) package is ready for shipping.The total number of outputs voltage regulator supports is 2.To avoid malfunctioning, set the operating temperature to -40°C~85°C.In this voltage regulator, the pins are arranged in a 12 pattern.There is a voltage requirement of 2.7V for this regulator.5.5V is the maximum voltage this voltage regulator can handle.300mA should be the current output from the DC DC Switching Regulator.Mounting on PCBs or other boards is possible with the Surface Mount on the board.This voltage regulator 12v is made from a TPMIC? voltage regulator 12v.

AAT2500IWP-AW-T1 Features

2 outputs
Operating Temperature: -40°C~85°C

AAT2500IWP-AW-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT2500IWP-AW-T1 Linear Regulator Controllers applications.

Constant high-current source
Low parts count 5.0V to 3.3V computer supply
Low noise SMPS post regulator
Low-dropout SMPS post regulator
High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators

User Guide
