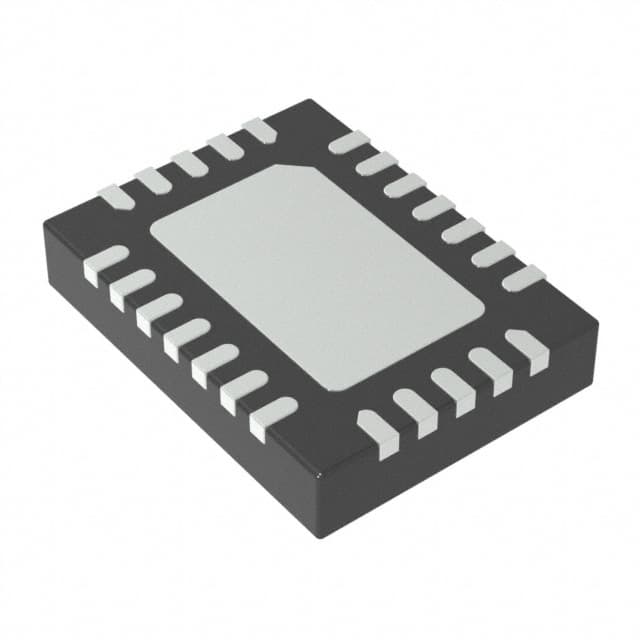

SKYWORKS AAT2404IMK-T1

Manufacturer No:

AAT2404IMK-T1

Manufacturer:

SKYWORKS

Package:

24-WFQFN Exposed Pad

Description:

PMIC 400kHz 24-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT2404IMK-T1 information

SKYWORKS AAT2404IMK-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT2404IMK-T1.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-WFQFN Exposed Pad

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2010

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

ECCN Code
EAR99

Type
DC DC Controller

Applications
Backlight

Frequency
400kHz

Number of Outputs
1

Max Supply Voltage
28V

Voltage - Output
100V

Topology
Step-Up (Boost)

Output Current per Channel
10A

Internal Switch(s)
No

Voltage - Supply (Min)
10.8V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS AAT2404IMK-T1.

AAT2404IMK-T1 Overview

In order to save board space, the led driver uses the 24-WFQFN Exposed Pad package. For the design of this LED driver, 1 outputs are used.The mounting method is Surface Mount.As a DC DC Controller, it has high efficiency and reliability.The led light driver operates normally at -40°C~85°C TA. The benefits it provides to Backlight are considerable.In this case, the frequency is 400kHz.A voltage supply less than 10.8V will cause undetermined failures.Surface Mount is mounted in the way.A maximum supply voltage of 28V is acceptable.There is 100V voltage output from it.

AAT2404IMK-T1 Features

Available in the 24-WFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 400kHz

AAT2404IMK-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT2404IMK-T1 LED Driver ICs applications.

Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
