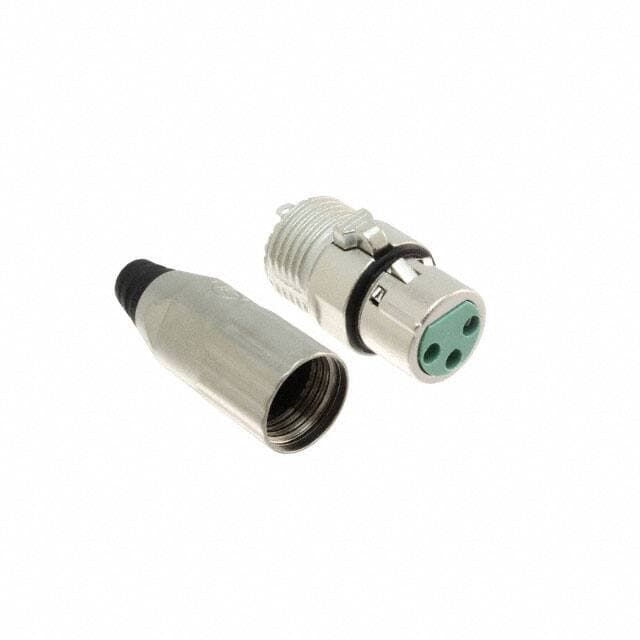

Switchcraft Inc. AAA3FZ

Manufacturer No:

AAA3FZ

Manufacturer:

Switchcraft Inc.

Package:

Metal

Description:

Plug, Female Sockets Zinc Alloy Free Hanging (In-Line) 3 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAA3FZ information

Switchcraft Inc. AAA3FZ technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. AAA3FZ.

Type
Parameter

Factory Lead Time
12 Weeks

Contact Material
Copper Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Insulation Material
Plastic

Shell Material
Zinc Alloy

Insert Material
Thermoplastic

Body Material
Metal, Zinc

Backshell Material, Plating
Zinc Alloy, Nickel

Packaging
Bulk

Series
Q-G® AAA

Published
2000

JESD-609 Code
e4

Feature
Backshell, Cable Clamp, Ground, Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder Cup

ECCN Code
EAR99

Connector Type
Plug, Female Sockets

Number of Positions
3

Max Operating Temperature
65°C

Min Operating Temperature
-40°C

Applications
Audio, Industrial, Instrumentation, Medical

Voltage - Rated
125VAC

Fastening Type
Latch Lock

Contact Finish - Mating
Silver

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Option
GENERAL PURPOSE

Orientation
Keyed

Shielding
Shielded

Reach Compliance Code
not_compliant

Current Rating
15A

Shell Finish
Nickel

Shell Size - Insert
XLR

Voltage - Rated AC
125V

Max Current Rating
15A

Number of Ports
1

Number of Poles
3

Cable Opening
0.100 ~ 0.220 (2.54mm ~ 5.59mm)

Diameter
19.7mm

Length
72.9mm

REACH SVHC
Yes

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. AAA3FZ.

AAA3FZ Overview

This product is packaged in a Plug, Female Sockets cartonThis device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.Q-G® AAA Series product.The best time to use this device is when the temperature is below 65°C.It has to be at least -40°C degrees to work.Packaged with the Metal, there is a device enclosed.Its Backshell, Cable Clamp, Ground, Strain Relief feature makes it more powerful in a number of ways.Cable, Free Hanging is mounting the part.

AAA3FZ Features

Q-G® AAA series

AAA3FZ Applications

There are a lot of Switchcraft Inc.
AAA3FZ Circular Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
