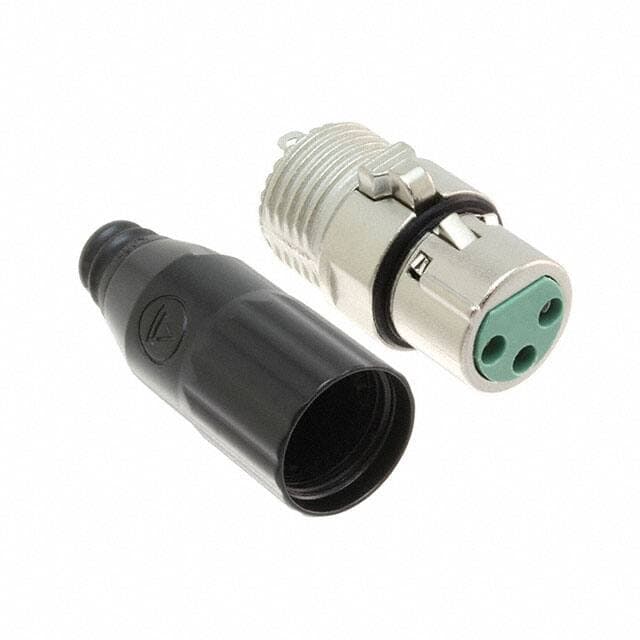

Switchcraft Inc. AAA3FPZ

Manufacturer No:

AAA3FPZ

Manufacturer:

Switchcraft Inc.

Package:

Metal

Description:

Plug, Female Sockets Zinc Alloy Free Hanging (In-Line) 3 Positions Solder Cup Silver Nickel Bulk Keyed Latch Lock

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAA3FPZ information

Switchcraft Inc. AAA3FPZ technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. AAA3FPZ.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Copper Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Insulation Material
Plastic

Shell Material
Zinc Alloy

Insert Material
Thermoplastic

Body Material
Zinc

Backshell Material, Plating
Zinc Alloy, Nickel

Packaging
Bulk

Series
Q-G® AAA

Published
2007

JESD-609 Code
e4

Feature
Backshell, Cable Clamp, Ground, Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder Cup

ECCN Code
EAR99

Connector Type
Plug, Female Sockets

Number of Positions
3

Max Operating Temperature
65°C

Min Operating Temperature
-40°C

Applications
Audio, Industrial, Instrumentation, Medical

Voltage - Rated
125VAC

Fastening Type
Latch Lock

Contact Finish - Mating
Silver

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Option
GENERAL PURPOSE

Orientation
Keyed

Shielding
Shielded

Reach Compliance Code
not_compliant

Current Rating
15A

Shell Finish
Nickel

Shell Size - Insert
XLR

Max Current Rating
15A

Number of Ports
1

Number of Poles
3

Cable Opening
0.100 ~ 0.220 (2.54mm ~ 5.59mm)

Diameter
19.7mm

Length
72.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. AAA3FPZ.

AAA3FPZ Overview

The packaging contains Plug, Female Sockets.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Q-G® AAA belongs to the Q-G® AAA Series.Whenever the temperature is below 65°C, it's best.There is a minimum temperature requirement of [0°C] for this device.Packaging with Metal contains a device.In many ways, it is more powerful due to its Backshell, Cable Clamp, Ground, Strain Relief feature.There is a Cable, Free Hanging mount on the part.

AAA3FPZ Features

Q-G® AAA series

AAA3FPZ Applications

There are a lot of Switchcraft Inc.
AAA3FPZ Circular Connectors applications.

Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
