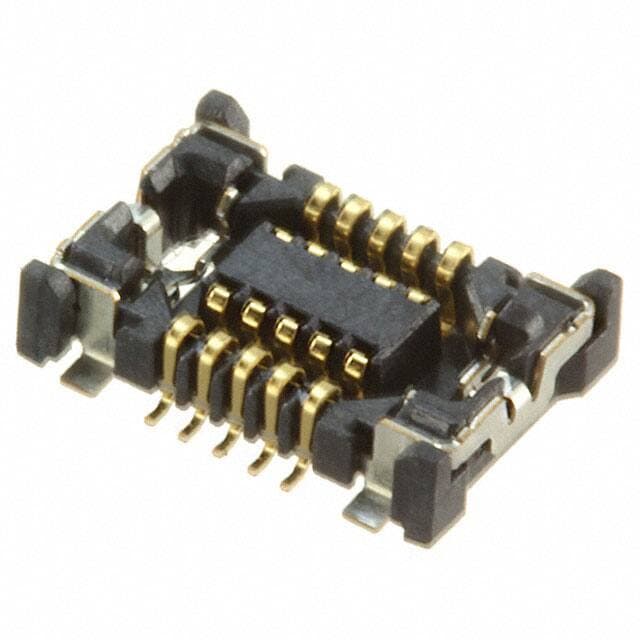

JAE AA01A-S010VAT-0001

Manufacturer No:

AA01A-S010VAT-0001

Manufacturer:

JAE

Package:

Description:

Receptacle, Center Strip Contacts 2 Rows 0.020 0.50mm Surface Mount 10 Positions AA01A Gold

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AA01A-S010VAT-0001 information

JAE AA01A-S010VAT-0001 technical specifications, attributes, parameters and parts with similar specifications to JAE AA01A-S010VAT-0001.

Type
Parameter

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Series
AA01A

Published
2011

Feature
Solder Retention

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Receptacle, Center Strip Contacts

Number of Positions
10

Number of Rows
2

Pitch
0.020 0.50mm

Contact Finish
Gold

Contact Finish Thickness
3.94?in 0.10?m

Height Above Board
0.058 1.48mm

Stack Height (Mating)
1.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for JAE AA01A-S010VAT-0001.

Datasheets:

jaeelectronics-aa01as030va1r3000-datasheets-7040.pdf

AA01A-S010VAT-0001 Overview

Currently, it is packaged in Receptacle, Center Strip Contacts.The mounting type of the device is Surface Mount.A product of the AA01A Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Solder Retention when it operates.Using a Surface Mount socket is required in order to mount the item.

AA01A-S010VAT-0001 Features

AA01A series
Mounting Type:Surface Mount

AA01A-S010VAT-0001 Applications

There are a lot of JAE Electronics
AA01A-S010VAT-0001 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
