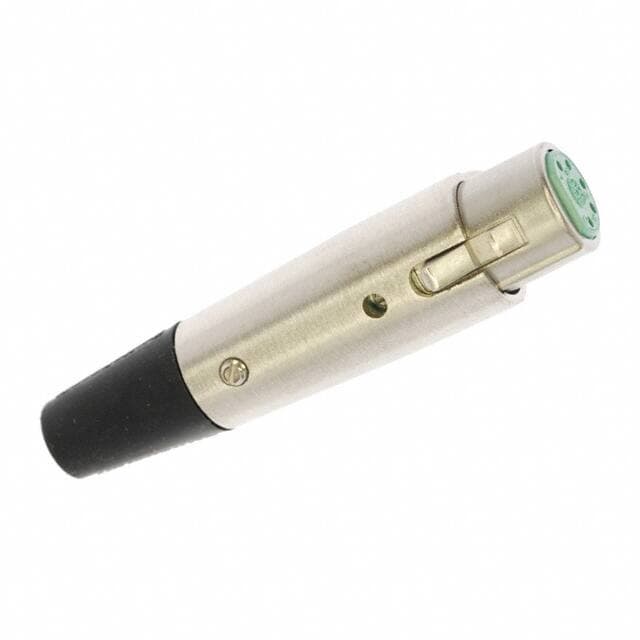

Switchcraft Inc. A5F

Manufacturer No:

A5F

Manufacturer:

Switchcraft Inc.

Package:

Metal

Description:

Plug, Female Sockets Stainless Steel Free Hanging (In-Line) 5 Positions Solder Cup Silver Bulk Keyed Latch Lock

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A5F information

Switchcraft Inc. A5F technical specifications, attributes, parameters and parts with similar specifications to Switchcraft Inc. A5F.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Material
Brass

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Metal

Shell Material
Stainless Steel

Housing Material
Zinc

Insert Material
Polyester

Body Material
Metal, Zinc

Backshell Material, Plating
Zinc, Nickel

Packaging
Bulk

Series
Q-G® A

JESD-609 Code
e4

Feature
Backshell, Cable Clamp, Ground, Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder Cup

Connector Type
Plug, Female Sockets

Number of Positions
5

Applications
Audio, Instrumentation

Gender
Female

Voltage - Rated
125VAC

Additional Feature
POLARIZING

Fastening Type
Latch Lock

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Option
GENERAL PURPOSE

Orientation
Keyed

Current Rating
7.5A

Shell Size - Insert
XLR

Plating
Nickel

Number of Ports
1

Number of Poles
5

Cable Opening
0.210 ~ 0.300 (5.33mm ~ 7.62mm)

Length
82.55mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Switchcraft Inc. A5F.

A5F Overview

This product is packaged in a Plug, Female Sockets box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Q-G® A Series.Furthermore, there are other features such as POLARIZING, to name a few.Metal refers to a package enclosing a device.In many ways, Backshell, Cable Clamp, Ground, Strain Relief makes it more powerful.By Cable, Free Hanging, the part is mounted.

A5F Features

Q-G® A series

A5F Applications

There are a lot of Switchcraft Inc.
A5F Circular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
