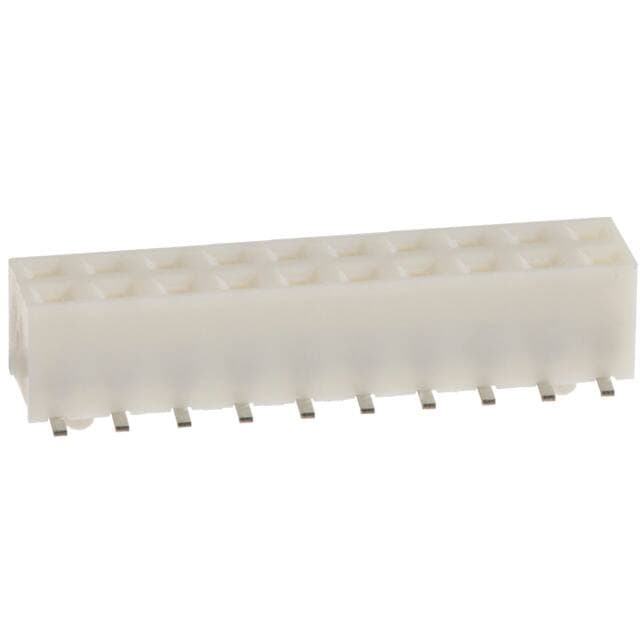

HIROSE A3A-20DA-2SV(71)
Manufacturer No:
A3A-20DA-2SV(71)
Manufacturer:
Package:
Description:
2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tube Gold Polyphenylene Sulfide (PPS) 20 Positions Female Socket
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
A3A-20DA-2SV(71) information
HIROSE A3A-20DA-2SV(71) technical specifications, attributes, parameters and parts with similar specifications to HIROSE A3A-20DA-2SV(71).
| Type | Parameter |
|---|---|
| Factory Lead Time | 10 Weeks |
| Contact Material | Phosphor Bronze |
| Mount | Surface Mount |
| Mounting Type | Surface Mount |
| Contact Shape | Square |
| Insulation Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Plastic |
| Operating Temperature | -55°C~85°C |
| Packaging | Tube |
| Series | A3 |
| Published | 2008 |
| JESD-609 Code | e3 |
| Feature | Board Guide |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Termination | Solder |
| ECCN Code | EAR99 |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Applications | General Purpose, Telecommunications |
| Number of Rows | 2 |
| Voltage - Rated | 200VAC |
| HTS Code | 8536.69.40.40 |
| Fastening Type | Push-Pull |
| Type | Parameter |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Type | Female Socket |
| Total Number of Contacts | 20 |
| Orientation | Straight |
| Depth | 4mm |
| Insulation Height | 0.165 4.20mm |
| Style | Board to Board or Cable |
| Number of Positions Loaded | All |
| Reach Compliance Code | unknown |
| Current Rating | 1A |
| Pitch - Mating | 0.079 2.00mm |
| Number of Conductors | ONE |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Row Spacing - Mating | 0.079 (2.00mm) |
| Number Of PCB Rows | 2 |
| Lead Pitch | 2mm |
| Contact Finish - Post | Tin |
| PCB Contact Pattern | RECTANGULAR |
| Body Breadth | 0.157 inch |
| Contact Gender | Female |
| Housing Color | Brown |
| Contact Resistance | 15mOhm |
