ALLEGRO A3909GLYTR-T
ALLEGRO A3909GLYTR-T

ALLEGRO A3909GLYTR-T

Manufacturer No:

A3909GLYTR-T

Manufacturer:

ALLEGRO

Package:

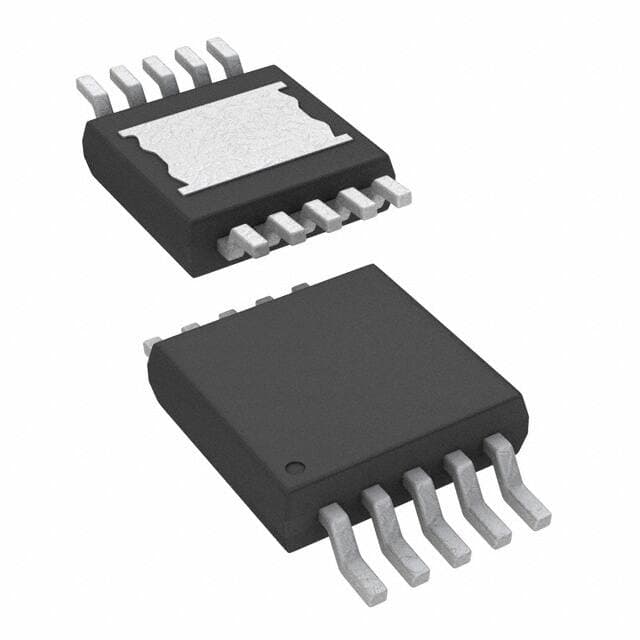

10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad

Description:

Tape & Reel (TR) 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad Logic 4V~18V Surface Mount -40°C~150°C TJ DC Motors, General Purpose, Stepper Motors Half Bridge (4) Inductive 4V~18V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A3909GLYTR-T information

ALLEGRO A3909GLYTR-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A3909GLYTR-T.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 10
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • DC Motors, General Purpose, Stepper Motors
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Motion Control Electronics
  • Technology
  • DMOS
  • Voltage - Supply
  • 4V~18V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 12V
  • Terminal Pitch
  • 0.5mm
  • Base Part Number
  • A3909
  • JESD-30 Code
  • S-PDSO-G10
  • Qualification Status
  • Not Qualified
  • Supply Voltage-Max (Vsup)
  • 18V
  • Power Supplies
  • 4/18V
  • Supply Voltage-Min (Vsup)
  • 4V
  • Interface
  • Logic
  • Analog IC - Other Type
  • VOICE COIL MOTOR CONTROLLER
  • Output Configuration
  • Half Bridge (4)
  • Output Current-Max
  • 1A
  • Supply Current-Max (Isup)
  • 8mA
  • Voltage - Load
  • 4V~18V
  • Current - Output / Channel
  • 1A
  • Fault Protection
  • Current Limiting, Over Temperature
  • Rds On (Typ)
  • 1.6 ? LS + HS
  • Load Type
  • Inductive
  • Length
  • 3mm
  • Height Seated (Max)
  • 1.06mm
  • Width
  • 3mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ALLEGRO A3909GLYTR-T.

Datasheets:

A3909GLYTR-T Description


The A3909GLYTR-T is a dual full-bridge motor driver, designed for 12 V medium power applications. The outputs are rated for operation through a power supply range of 4 to 18 V, and capable of up to 1 A per phase.



A3909GLYTR-T Features


  • Low RDS(on) outputs

  • Drives two DC motors or single stepper motor

  • Low power standby (Sleep) mode with zero current drain

  • Thermal shutdown protection

  • Parallel operation option for 1.8 A, single DC motor



A3909GLYTR-T Applications


  • Motor Drive
