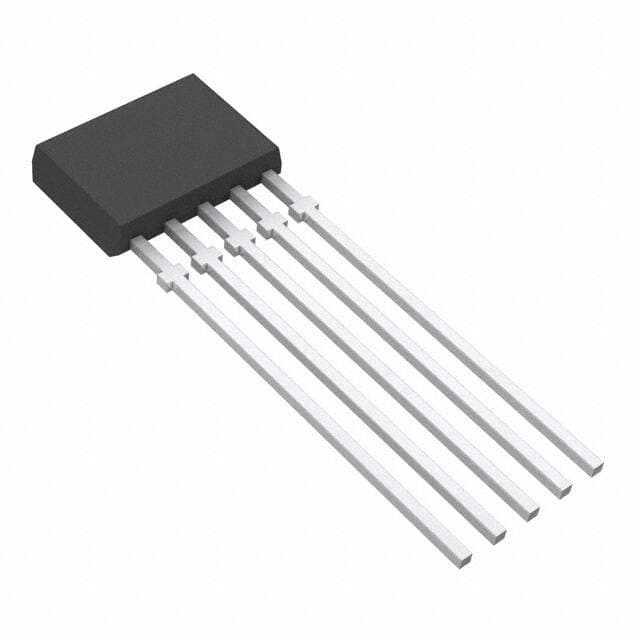

ALLEGRO A3422EKA

Manufacturer No:

A3422EKA

Manufacturer:

ALLEGRO

Package:

5-SSIP

Description:

Open Collector 4.5V~18V -40°C~85°C TA Bipolar Switch South Pole 7.5mT Trip, -7.5mT Release 18mA-Supply (Max) 5-SSIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A3422EKA information

ALLEGRO A3422EKA technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A3422EKA.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
5-SSIP

Number of Pins
5

Operating Temperature
-40°C~85°C TA

Packaging
Bulk

Published
2003

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Subcategory
Other Sensors

Technology
Hall Effect

Voltage - Supply
4.5V~18V

Current Rating
9mA

Function
Bipolar Switch

Current - Supply (Max)
18mA

Body Length or Diameter
6.33mm

Output Type
Open Collector

Max Output Current
30mA

Termination Type
SOLDER

Operating Supply Current
18mA

Polarization
South Pole

Output Current
30mA

Output Polarity
INVERTING

Housing
PLASTIC

Sensing Range
7.5mT Trip, -7.5mT Release

Hysteresis
4.6 mT

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ALLEGRO A3422EKA.

A3422EKA Overview

Magnetic switches are packaged in Bulk to prevent damage. For safety reasons, magnetic switches are packaged in 5-SSIP packages. For good performance, magnetic switches can supply 18mA as their maximum current. When they work, these switches can output 30mA as their maximum current. Switches work with 5 pins. It has 5 terminations. Switches should generally output 30mA current.

A3422EKA Features

Packaging: Bulk
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 4.5V~18V
Operating Temperature: -40°C~85°C TA
Mounting Type: Through Hole
5 Pins
5 Terminations
Output Type: Open Collector
Maximum Supply Current: 18mA

A3422EKA Applications

There are a lot of Allegro MicroSystems
A3422EKA Magnetic Switches applications.

Tachometer
Counter pickup
Flow-rate sensing
Brushless DC (direct current) motor commutation
Motor and fan control
Robotics control
Electric window lift
Convertible roof position
Motor assemblies
Medication dispensing control
