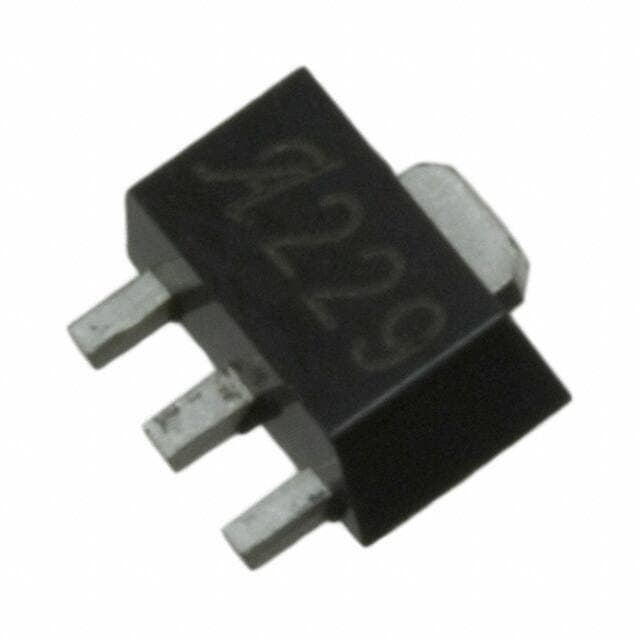

ALLEGRO A3283ELTTR-T

Manufacturer No:

A3283ELTTR-T

Manufacturer:

ALLEGRO

Package:

TO-243AA

Description:

Open Collector 4.2V~24V -40°C~85°C TA Latch South Pole 18mT Trip, -18mT Release 8mA-Supply (Max) 25mA-Output (Max) Matte Tin (Sn) TO-243AA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A3283ELTTR-T information

ALLEGRO A3283ELTTR-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A3283ELTTR-T.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-243AA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2010

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

Terminal Finish
Matte Tin (Sn)

Additional Feature
OPERATION FROM UNREGULATED SUPPLY; REVERSE BATTERY PROTECTION

HTS Code
8542.39.00.01

Technology
Hall Effect

Voltage - Supply
4.2V~24V

Terminal Position
SINGLE

Terminal Form
FLAT

Peak Reflow Temperature (Cel)
260

Supply Voltage
12V

Terminal Pitch
1.5mm

Time@Peak Reflow Temperature-Max (s)
40

JESD-30 Code
R-PSSO-F3

Function
Latch

Current - Supply (Max)
8mA

Output Type
Open Collector

Supply Voltage-Max (Vsup)
24V

Supply Voltage-Min (Vsup)
4.2V

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
South Pole

Current - Output (Max)
25mA

Test Condition
-40°C ~ 85°C

Sensing Range
18mT Trip, -18mT Release

Length
4.5mm

Height Seated (Max)
1.6mm

Width
2.45mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO A3283ELTTR-T.

A3283ELTTR-T Overview

Tape & Reel (TR) package done to protect the magnetic switch from damage. In order to prevent damage to the magnetic switches, they are packaged in TO-243AA packages. Good performance is achieved by magnetic switches that can supply 8mA as maximum current. Magnetic switches should have a maximum current of 25mA to operate. 3 terminations are contained in it. In a working switch, the maximum voltage should be 24V. It is expected that this switch will supply 12V voltage to ensure reliable operation. There is 4.2V minimum voltage that this magnetic switch can provide.

A3283ELTTR-T Features

Packaging: Tape & Reel (TR)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Supply Voltage: 4.2V~24V
Operating Temperature: -40°C~85°C TA
Mounting Type: Surface Mount
3 Terminations
Output Type: Open Collector
Maximum Supply Current: 8mA

A3283ELTTR-T Applications

There are a lot of Allegro MicroSystems
A3283ELTTR-T Magnetic Switches applications.

Convertible roof position
Motor assemblies
Medication dispensing control
Security and military applications
Detection of ferromagnetic
Discrimination of ferromagnetic
Localization of ferromagnetic
Conducting objects
Navigation
Position tracking
