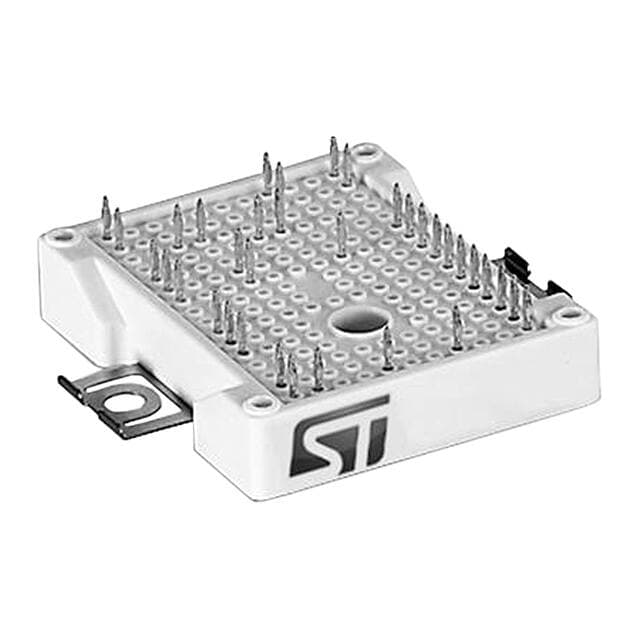

ST A2C35S12M3

Manufacturer No:

A2C35S12M3

Manufacturer:

Package:

Module

Description:

ACEPACK 2 converter inverter brake, 1200 V, 35 A trench gate field-stop IGBT M series, soft diode and NTC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A2C35S12M3 information

ST A2C35S12M3 technical specifications, attributes, parameters and parts with similar specifications to ST A2C35S12M3.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Reach Compliance Code
compliant

ECCN Code
EAR99

Samacsys Manufacturer
STMicroelectronics

Collector Current-Max (IC)
35 A

Collector-Emitter Voltage-Max
1200 V

Configuration
BRIDGE, 6 ELEMENTS WITH BUILT-IN DIODE

Gate-Emitter Thr Voltage-Max
7 V

Gate-Emitter Voltage-Max
20 V

JESD-30 Code
R-XUFM-X35

Number of Elements
6

Number of Terminals
35

Operating Temperature-Max
150 °C

Operating Temperature-Min
-40 °C

Package Body Material
UNSPECIFIED

Package Shape
RECTANGULAR

Package Style
FLANGE MOUNT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Polarity/Channel Type
N-CHANNEL

Power Dissipation-Max (Abs)
250 W

Surface Mount
NO

Terminal Form
UNSPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Transistor Application
POWER CONTROL

Transistor Element Material
SILICON

Turn-off Time-Nom (toff)
364 ns

Turn-on Time-Nom (ton)
170 ns

VCEsat-Max
2.45 V

Download datasheets and manufacturer documentation for ST A2C35S12M3.

Datasheets:

stmicroelectronics-ts3021hiylt-datasheets-8541.pdf

A2C35S12M3 Description

A2C35S12M3 is the converter-inverter brake (CIB) topology found in an ACE PACK 2 pack that includes NTC that incorporates the most advanced trench gate's field stop technology. This brand new IGBT technology is the most effective balance between switching and conduction loss to increase the effectiveness of any converter that operates that is up to 20 kHz.

A2C35S12M3 Features

ACEPACK 2 power module
Converter inverter brake topology
Integrated NTC
Isolation rating of 2500 Vrms/min
RoHS compliant
