ALLEGRO A2550KLPTR-T

Manufacturer No:

A2550KLPTR-T

Manufacturer:

ALLEGRO

Package:

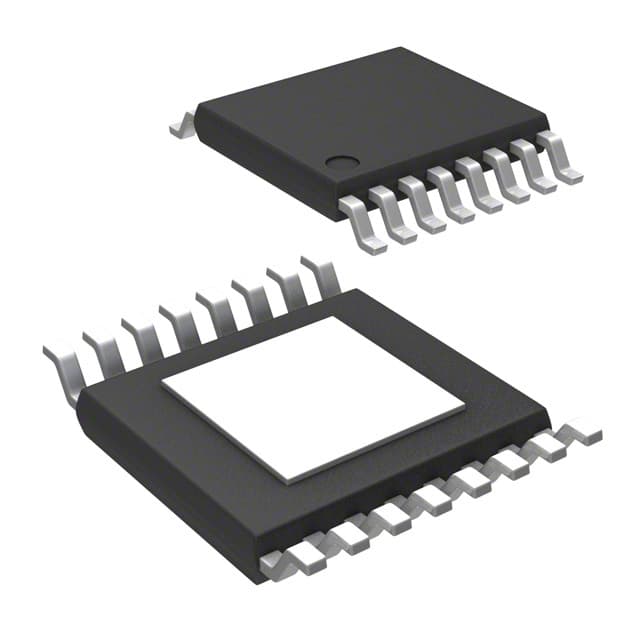

16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

7/40V N-Channel 0.65mm PMIC A2550 16 Pin 9V 16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A2550KLPTR-T information

ALLEGRO A2550KLPTR-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO A2550KLPTR-T.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Feature
5V Regulated Output, Status Flag

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
Peripheral Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
9V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

Number of Outputs
3

Output Type
N-Channel

Supply Voltage-Max (Vsup)
40V

Power Supplies
7/40V

Supply Voltage-Min (Vsup)
7V

Interface
On/Off

Current - Output (Max)
200mA

Output Configuration
Low Side

Input Type
Non-Inverting

Switch Type
Relay, Solenoid Driver

Ratio - Input:Output
1:1

Voltage - Load
7V~40V

Driver Number of Bits
3

Fault Protection
Current Limiting (Fixed), Over Temperature

Screening Level
AEC-Q100

Turn On Time
2 ?s

Rds On (Typ)
5 ?

Turn Off Time
1 ?s

Built-in Protections
TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction
SOURCE

Length
5mm

Height Seated (Max)
1.2mm

Download datasheets and manufacturer documentation for ALLEGRO A2550KLPTR-T.

Datasheets:

allegromicrosystems-a2550klptrt-datasheets-3566.pdf

allegromicrosystemsllc-a2550klptrt-datasheets-7704.pdf

allegromicrosystemsllc-a2550klptrt-datasheets-7705.pdf

allegromicrosystemsllc-a2550klptrt-datasheets-7706.pdf

A2550KLPTR-T Overview

As you can see, it's packaged in the way of a Tape & Reel (TR).This file is included in package 16-TSSOP (0.173, 4.40mm Width) Exposed Pad.This LED driving board is mounted using the mounting type Surface Mount.There is a switch type of Relay, Solenoid Driver.It is best to set the temperature to -40°C~125°C TA to ensure reliable operation.It is possible to use 3 outputs in the lighting driver.A maximum output voltage of N-Channel volts has been specified.As far as features are concerned, the LED driving board has 5V Regulated Output, Status Flag.I believe it belongs to the A2550 family.As a result, there are 16 terminations.In order to operate, 16 pins are used.It contains 1 functions.This lighting driver is capable of delivering a maximum output of 200mA volts.It is possible to achieve a high level of efficiency with a supply voltage of 9V.In this case, it is mounted in the way of Surface Mount.The LED driver has a total of 16 pins.Self-contained in an econtainer with a capacity of Peripheral Drivers, this LED driver is self-contained.The maximum supply voltage for this LED driver is 40V (Vsup).In order to operate normally, the supply voltage (Vsup) must be maintained above 7V.This part is powered by 7/40V.

A2550KLPTR-T Features

Supplied from 9V

A2550KLPTR-T Applications

There are a lot of Allegro MicroSystems
A2550KLPTR-T Power Switches ICs applications.

Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Hard Disk Drives
Solid-State Drives
Hot Swap
HDD and SSD
Hot Swap
Wireless Modem Data Cards
